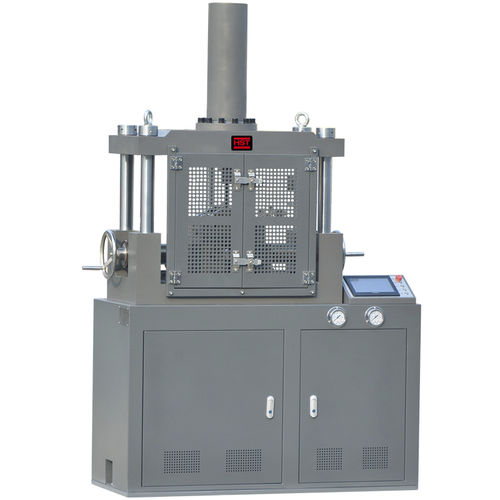

Bending testing machine HST-BT300

manualmaterialhydraulic

Usage: The HSW-300A bending tester is driven by a hydraulic power source. It consists of a test main unit, an oil source (hydraulic power source) and a standard bending head. Usage: HST-BT300 bending tester is driven by a hydraulic power source. It consists of a test main unit, an oil source (hydraulic power source) and a standard bending head. The maximum test force is 300kN. Parameters: Maximum thrust - 300kN Working operation - 300mm Max working pressure - 25Mpa Bending angle range - 0-180° Bending circle sample diameter - Φ6-Φ50mm Bending head diameter - Φ6-Φ128mm Maximum distance of rollers - 300 mm Cylinder loading speed - About 120mm/min Main engine dimensions - 1200 mm×550 mm×2000 mm The engine power - 1.1kW The host weight - About 1100 kg
