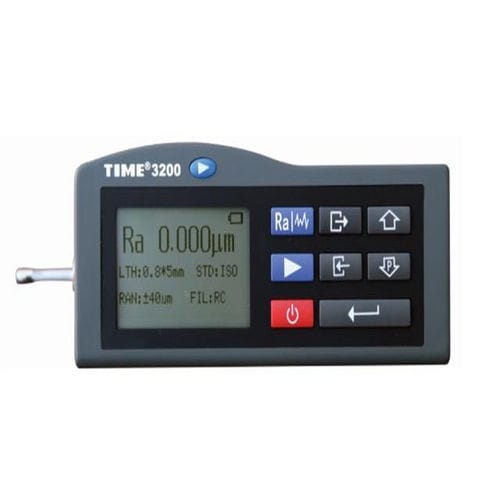

Surface roughness tester TIME®3200/3202

handheldwith built-in printerwith external sensor

TIME®3200/3202 Surface Roughness Tester (TR200) is a cost-effective roughness measuring equipment which supports a dozen of parameters. It is small and light with better accuracy. TIME®3200/3202 can be equipped with several optional pickup for different applications. Well suited for on-site roughness testing. Features ● Over dozen measurement parameters applicable for roughness test of various mechanical manufacturing processes in production lines, workshops and labs. ● High accuracy inductive pickup ● Easy operation manual and large LCD display with backlight. ● Pickup stylus position indicator. ● Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management. ● Connected with printer to print the data and graphs on-site. ● Storage and review function for up to 15 groups data and graphs. ● Rk data and graphic are available. ● Digital filter: RC, PC-RC, Gauss, D-P ● Optional delicate accessories for more accurate results and easier operation eg. measuring platform, steel support and so on
