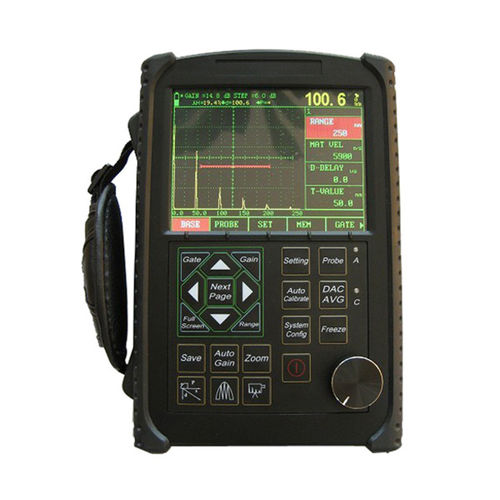

Ultrasonic flaw detector HST-650

for NDTfor cablesfor metal structures

★ Automated calibration、Automated gain ★ DAC、AVG、TCG、B scan、AWS ★ High-speed capture and very low noise ★ Solid metal housing ★ high contrast viewing of the waveform from bright ★ Powerful pc software and reports can be export to excel Features · Automated display precise flaw location(Depth d、level p、distance s、amplitude、sz dB、ф)； · Automated switch three staff gauge ((Depth d、level p、distance s)； · Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ； · Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated · 6dB DAC functions; · Standards of test for DAC is saved. · 500 independence setup, any criterion can be input freely, we can work in the scene without test block； · Big memory of 1000 A graph · Automated gain and gain scan; · Peak Hold and Peak Memory； · B scan; · AWS D1.1 · Automated make video of test process and play; use USB flash disk，the length of video is unlimited. · Powerful pc software and reports can be export to excel; · Li battery, continue working time up to 10 hours; · The embeded software can be online updated； Other assistant function · Display freeze; · Automated echo degree; · Angles and K-value; · Lock and unlock function of system parameters; · Electronic clock calendar ; · Two gates setting and alarm indication; · Gate and DAC alarm;
