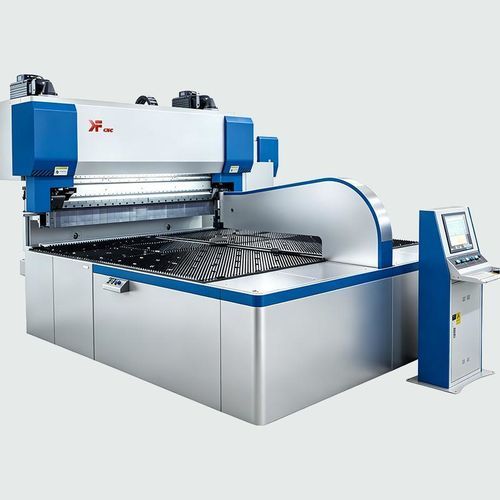

Servo-electric bender B2530

sheet metalautomaticPLC-controlled

Short Description

• Panel bender designed for high-efficiency, continuous multilateral bending with automatic tool-changing (ATC)
• Closed-loop control via Germany Beckhoff system for high bending accuracy
• Italy GIVI MEASURE precision linear encoder for position feedback
• Heat-treated high-strength machine body for long-term stability
• No manual tool replacement required; blank-holder tool length auto-adjusts to sheet length
• Automatic programming software completes full process planning, verification and optimization
• Full servo motor control for fast, energy-efficient operation
• Automatic pressing-force control and optional overlapping function

Technical Specification
Model: B2530
Unit: mm / KN / ° / T / KVA (as appropriate per item)
Max. Bending Length: 2500 mm
Max. Work-piece Diagonal Length: 2800 mm (Unfolded)
Min. Box Size: 410×230 mm (Inner side width)
Max. Bending Height: 300 mm
Max. Bending Force: 280 KN
Max. Pressing Force: 1100 KN (Option)
Max. Bending Inner Buckle Depth: 30 mm
Thickness of Sheet: 0.5-1.5 mm (Carbon Steel)
Bending Angle: -130° to +130°
Bending Angle Accuracy: ±0.75°
Bend Straightness: ±0.3 mm/m
Positioning Accuracy: ±0.1 mm
Adjustment of Bending Length: Auto
Bending Process: Auto
Overlapping Function: Option (Max. Pressing Force: 1100 KN)
Axis: 18
Gas Pressure: ≥0.6 MPa
Power: 65 KVA
Weight: 21 T
Machine Dimensions: 5000×3200×2800 mm

Standard Components

• Controller: Germany Beckhoff
• I/O Module: Germany Beckhoff
• Grating Ruler: Italy GIVI MEASURE
• Sensor: Germany BALLUFF
• Relay: Schneider / Omron
• Servo Motor and Driver: VEICHI
• Heavy Precision Ball Screw: Nanjing YIGONG
• Heavy Precision Guider: Nanjing YIGONG
• Precision Reducer: Lee Ming, Taiwan
• Precision Bearings: NSK, Japan
• Timing Belt and wheel: Fulong, Ningbo
• Pneumatic Components: SMC / Airtac
• Lubrication Component: BIJUR
• Software: Kafe

Technical Specifications

• Model: B2530
• Max. bending length: 2500 mm
• Work-piece diagonal length: 2800 mm (unfolded)
• Min. box size: 410×230 mm (inner side width)
• Max. bending height: 300 mm
• Max. bending force: 280 KN
• Max. pressing force: 1100 KN (option)
• Sheet thickness (carbon steel): 0.5 - 1.5 mm
• Bending angle: -130° to +130°
• Bending angle accuracy: ±0.75°
• Bend straightness: ±0.3 mm/m
• Positioning accuracy: ±0.1 mm
• Number of axes: 18
• Required air pressure: ≥0.6 MPa
• Power: 65 KVA
• Weight: 21 T
• Machine dimensions: 5000 × 3200 × 2800 mm
