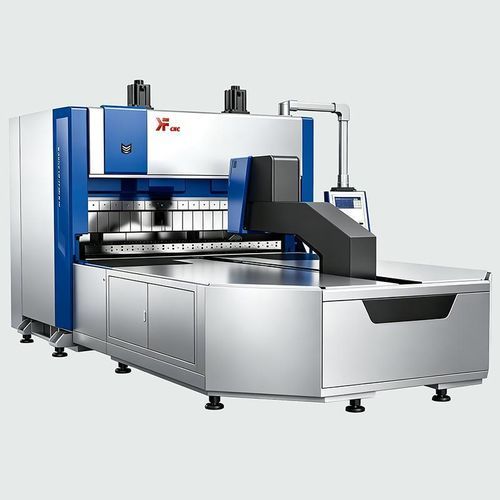

Servo-electric bending machine KMB-2200

fully-electricmanualsheet metal

Short Description
KaFe Manual Panel Bender (bending center) KMB-2200 is a high-speed, electric servo-driven panel bending center with manual tool-changing (MTC). It is designed for automated sheet-metal bending operations that require multi-axis control and fast cycle times while maintaining tight dimensional accuracy.

Product Function
The KMB-2200 bends sheet metal into complex shapes without dedicated molds. A full electric servo system replaces hydraulic drives for lower maintenance, higher repeatability and faster response. The machine supports automated production line interfaces and multi-axis motion for right-angle, non-right-angle and arc bending, as well as complex multi-step part forming.

Price
Fob Price: US $0.5 - 9,999 / Piece

Main Configuration Instructions

• High-grade casting body: Frame cast from QT500-7 / GG25 with stress-relief treatment and precision inspection to ensure long-term stability and rigidity.
• Heavy-duty screw: Taiwan MYE TBI ground screw for stable transmission and high positioning precision with low operating cost.
• High-strength linear rails: Taiwan PMI/SHAC heavy-load linear guides for increased load capacity and precision.

Main Technical Parameters (excerpt from table)
Model: KMB-2200
Feeding structure: Arm Type
Workbench structure: Brush
Bending length: 2250 mm
Sheet length: 2200 mm
Sheet width: 1500 mm
Bending height: 175 mm
Minimum four-side forming dimensions: 320 x 200 mm
Minimum two-side forming dimensions: 200 mm
Minimum arc radius: 1.2 mm
Maximum continuous bending speed: 0.5 s/blade
Break distance between upper and lower blades: 190 mm
Bending accuracy: 0.03 mm
Bending angle range: 0–180°
Maximum material thickness: Aluminum 2.0 mm / Carbon Steel 1.5 mm / Stainless Steel 1.0 mm
Minimum material thickness: 0.35 mm
CNC system: SYNTEC / Taiwan New Generation
Operating system: Win7+OS
Number of axes: Standard 13 Axis
Rated voltage: 380 V
Peak power: 24 KW
Average power: 4.5 KW
Machine dimensions: 4850 x 2780 x 2600 mm
Machine weight: ~12,000 kg

Configuration Details (key items)

• Machine frame: Independently designed QT500 casting with strict stress relief treatment for long-term geometric stability.
• Mold: High-frequency quenching and tempering for improved wear resistance and longer service life.
• Control system: Taiwan new-generation CNC (Kefei CNC) for multi-axis synchronization and simplified programming.
• Oil supply & self-lubrication system: Automatic oiling with low-oil alarm to ensure continuous operation.
• Flattening function: Integrated flattening capability for pre/post processing.
• Upper and lower edge pressing: Enables upper/lower dead-edge forming.
• Handwheel: Anti-collision knife function with manual axis positioning via handwheel.
• Automated production line interface: Ready for connection to upstream and downstream equipment.
• Advanced & arc commands: Direct arc command input with radius parameter for arc bending.
• Servo drive: Inovance/Hechuan bus servo for overload resistance and smooth low-speed performance.
• Electrical components: Schneider parts for stable performance.
• Micro relays: Japan Izumi relays with copper coils for reliable conductivity and longevity.

Bending case display
KaFe Panel Bender KMB-2200 performs molding of sheet metal into right angles, non-right angles, arcs and multi-step shapes without dedicated molds, suitable for a range of industrial workpieces and applications.

Technical specifications

• Model: KMB-2200
• Bending length: 2250 mm
• Sheet length: 2200 mm
• Sheet width: 1500 mm
• Bending height: 175 mm
• Min four-side forming dimensions: 320 x 200 mm
• Min two-side forming dimensions: 200 mm
• Min arc radius: 1.2 mm
• Max continuous bending speed: 0.5 s/blade
• Break distance: 190 mm
• Bending accuracy: 0.03 mm
• Bending angle range: 0–180°
• Material thickness (max): Aluminum 2.0 mm / Carbon Steel 1.5 mm / Stainless Steel 1.0 mm
• Material thickness (min): 0.35 mm
• CNC system: SYNTEC / Taiwan New Generation
• OS: Win7+OS
• Axes: Standard 13 Axis
• Voltage: 380 V
• Peak power: 24 KW
• Average power: 4.5 KW
• Machine dimensions: 4850 x 2780 x 2600 mm
• Machine weight: ~12,000 kg
• Main components & features: QT500 casting frame, MYE TBI screw, PMI/SHAC guides, Inovance/Hechuan servo, Schneider electricals, Japan Izumi relays, automatic oiling, anti-collision knife function, production line interface
