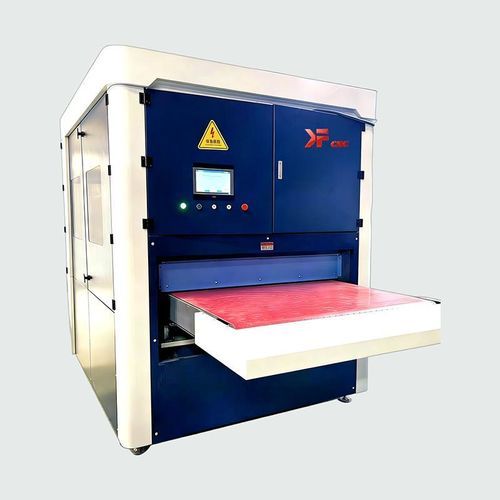

Disc deburring machine KDR-1300/1600
edge roundingpolishingdeslagging

Disc deburring machine - KDR-1300/1600 - Jinan Kafe CNC Machinery Co., Ltd. - edge rounding / polishing / deslagging

Add to favorites

Compare this product

Go to the Jinan Kafe CNC Machinery Co., Ltd. website for more information

Characteristics

Type

disc

Associated function

edge rounding, polishing, deslagging

Applications

for sheet metal, metal parts

Other characteristics

computer-controlled, PC-controllable

Working width

Min.: 1,300 mm
(51.18 in)

Max.: 1,600 mm
(62.99 in)

Description

Overview
Designed for laser-cut parts. Performs deslagging, edge rounding and polishing with configurable grinding wheels and PLC touchscreen control.

Product Parameter
Model: KRD-1300/1600
Processing Thickness: 1-90 mm
Feeding Speed: 0-16 m/min
Worktable Surface: 1300/1600 mm
Grinding Wheel Specifications: 1330/1630*2200
Voltage: 380 V, 50 Hz
Control System: PLC + Touchscreen
Processing Length: ≥10 mm

Images
Product gallery includes main and detail images showing machine layout and working status.

Technical specifications

Intended application: exclusively for laser-cut parts (deslagging, edge rounding, polishing)
Model designation shown in table: KRD-1300/1600 (product title uses KDR-1300/1600)
Processing thickness range: 1–90 mm
Feeding speed: 0–16 m/min
Worktable surface width: 1300 mm or 1600 mm
Grinding wheel specifications: 1330/1630*2200
Voltage: 380 V, 50 Hz
Control system: PLC with touchscreen
Minimum processing length: ≥10 mm
