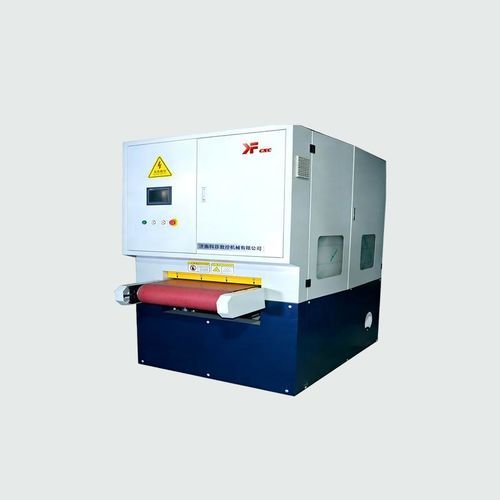

Belt deburring machine HDR-650

brush rollerabrasive beltbrush

Short Description
Specialist in complex geometry processing for metal sheets and components. One-step radius finishing for holes and edges with integrated deburring and polishing.

Overview
Combined wide-belt and universal roller-brush design integrates deburring, polishing, graining and edge rounding into a single pass. Engineered for efficient removal of slag and burrs after laser, plasma cutting or stamping, delivering uniform surface results while preserving the workpiece finish. Supports multiple abrasive belt configurations to transition from coarse grinding to fine polishing and can process film-coated and galvanized sheets safely.

Smart Control System | One-Touch Operation, Precision Protection
Fully automatic PLC control with HD touchscreen for real-time monitoring, auto-lifting, auto-tracking (belt alignment) and intelligent sensing. Automatic alarms and controlled shutdowns protect production in case of low air pressure or abrasive-belt anomalies. Dual operation modes (Manual and Auto) allow adaptation to operator preference.

Product Parameters
Model: HDR-650 (KRD-800/1000 series)
Processing thickness: 1–90 mm
Feeding speed: 0–16 m/min
Worktable width: 650 mm
Grinding wheel: 630 × 2200 mm
Voltage: 380 V, 50 Hz
Control system: PLC + Touchscreen
Minimum processing length: ≥ 10 mm

Technical features

• Combined wide-belt and universal roller-brush design for deburring, polishing, graining and edge rounding
• Applicable to a wide range of metal sheets and complex parts
• Optimized for slag and burr removal after laser/plasma cutting or stamping
• Multiple belt configurations enabling coarse-to-fine surface finishing
• Safe processing of film-coated and galvanized sheets
• Auto-lifting, auto-tracking (belt alignment) and intelligent sensing for stable operation
• Real-time monitoring, automatic alarms and shutdowns for production safety
• Dual operation modes: Manual & Auto
