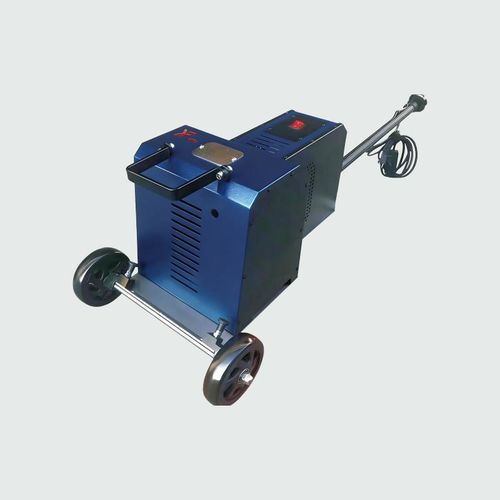

Laser cleaning machine KSC-200

automaticindustrialfor metalworking

Short description

• Slat cleaning specialist
• High-efficiency slag removal
• Compatible with CO₂ & Fiber lasers
• Compatible with kilowatt and 10kW+ systems

Technical parameters
Model: KSC-200
Input Voltage: 220 V
Rated Power: 2300 W
Operating Speed: 1400 m/min
Slat Thickness: 2.5–4 mm
Maximum removable slag thickness: 25 mm
Minimum slat spacing: 33 mm

Overview
The KSC-200 is a professional slat cleaning solution designed for universal compatibility with CO₂ and fiber laser cutting systems. Industrial-grade construction provides stability and deep-cleaning performance. The unit handles heavy slag up to 25 mm and operates on slats spaced as close as 33 mm, supporting a wide range of laser power levels.

Applications & usage notes

• Auxiliary/maintenance device for laser cutting systems
• Removal of slag from slats to extend cutting equipment service life
• Designed for industrial environments and heavy-duty slag removal

Technical specifications

• Model: KSC-200
• Input Voltage: 220 V
• Rated Power: 2300 W
• Operating Speed: 1400 m/min
• Supported slat thickness: 2.5–4 mm
• Maximum removable slag thickness: 25 mm
• Minimum slat spacing: 33 mm
• Compatible with CO₂ and fiber lasers, including kilowatt and 10kW+ levels
