Universal testing machine CMT-100

tensilecomputer-controlledautomated

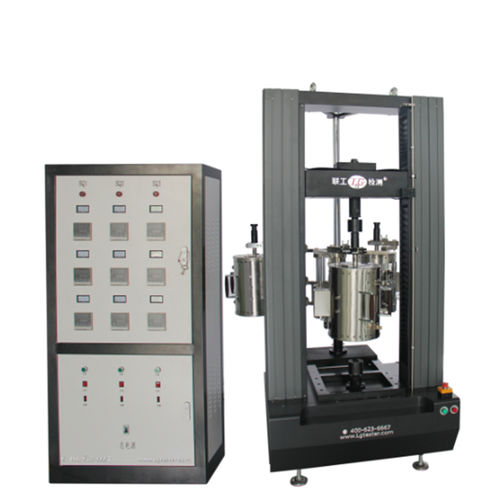

The multi-station high-temperature tensile testing machine is a CMT series electronic universal testing machine developed by Liangong. The host is equipped with a 3-station high-temperature furnace. The two can be used in any combination with the host according to the requirements of the use environment. It can provide a stable high temperature test environment for various metal and non-metal materials, and 3 high-temperature furnaces can be switched at will, which greatly improves work efficiency. The multi-station high-temperature tensile testing machine only needs to remove the high-temperature furnace when doing the room temperature test, which can fully meet the requirements of GB/T4338-2006, HB5195-1996 in round bar specimens, rectangular specimens, pipes, etc., Tensile strength test under special ambient temperature and normal temperature environment. Maximum test force: 50kN / 100kN / 200kN / 300kN Accuracy level: 0.5 level Test force measurement range: 0.2%～100%FS (full scale) Test force indication error: within ±0.5% of indicated value Test force resolution: ±1/300000 of the maximum test force (the whole process is not divided, and the resolution of the whole process remains unchanged) Deformation measurement range: 0.2%～100%FS Deformation indication error: within ±0.5% of indication Deformation resolution: 1/300000 of the maximum deformation Displacement indication error: within ±0.5% of indication Displacement resolution: 0.025μm
