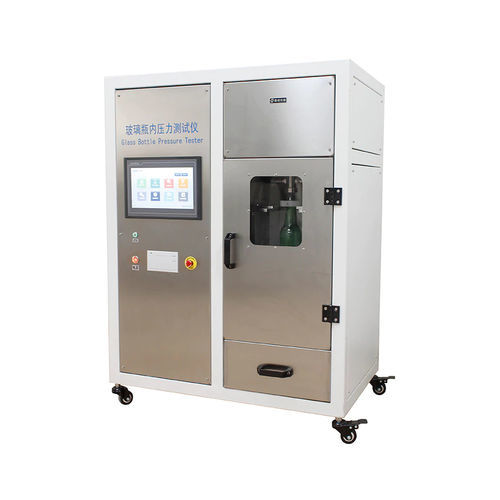

Pressure test equipment SCK-Y

automaticfor packagingfor glass bottles

The SCK-Y Bottle Ramp Pressure Tester is suitable for the internal pressure test of all kinds of beer bottles, wine bottles, beverage bottles, infusion bottles, antibiotic vials, etc. This instrument meets the requirements of the holding pressure test and explosive pressure test of any size of bottles. The internal pressure test machine for glass bottles is used by breweries, glass bottle manufacturers, testing agencies, and pharmaceutical manufacturers. - Product Features: - One-button operation, simple and convenient. Glass fragment and water collection device is more convenient and safe. - The equipment has a comprehensive test function. Two test modes of pressurization mode and holding pressure mode meet different testing requirements. - High test accuracy, wide test range can meet different test requirements. - Fast test speed. The pressure rise time for each bottle tested is no more than 10 seconds, and it is about 4 seconds for the ordinary test (the end pressure is 1.60Mpa), which improves work efficiency highly. - High automation. The function of automatic pressure increase, pressure retention, pressure relief, and malfunction alarm are all available. - Equipped with the micro printer, which can print the test data, results at the end of the experiment. - Imported key components assured the reliability of the test and greatly increase the service life of the equipment. - Principle: The pressure generated by the hydraulic pump driven by the servo motor through the equipment is transmitted to the pressure sensor and the glass bottle under test in an equivalent manner through the pipeline. The equipment controller collects the pressure signal from the pressure sensor in real-time and controls the servo motor according to the pressure signal value. Drive the hydraulic pump to linearly increase the pressure in the system according to the requirements until it reaches the preset value. The deadline of ramp pressure will be known and can check if the bottle would rupture at a preset pressure value. - Test Standards: This test instrument conforms to many national and international standards: GB/T 4546-2008, YBB00172003-2015. - Applications: - Suitable for internal pressure test of various glass bottles such as beer bottles, beverage bottles, vials, infusion bottles, etc. - Suitable for pressure holding test and burst pressure test of various different volume glass bottles. - Technical Specifications: - Pressure Range: 0.5 ~ 6 Mpa - Resolution: 0.01 Mpa - Pressure Tolerance: ±0.5%F.S - Test Number per Minute: 6 ~ 10 - Pressure Ramp Tolerance: <5% - Diameter of Bottle Mouth Clamp: Ф26 (Standard for beer bottle, customization is available) - Gas Pressure: 0.5 MPa ~ 0.7MPa (outside of supply scope) - Port Size: Ф6 mm PU Tubing - Power Supply: AC 100-240V 50/60Hz (can be changed to local requirement) - Instrument Dimension: 800 mm (L) x 500 mm (W) x 1000 mm (H) - Net Weight: 95 kg - Configurations: - Instrument, Micro Printer, Grips - Professional Software, 485 Communication Cable, Different Bottle Fixtures - The gas supply port of the instrument is Φ6 mm PU Tubing; Customers will need to prepare for gas supply. Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
