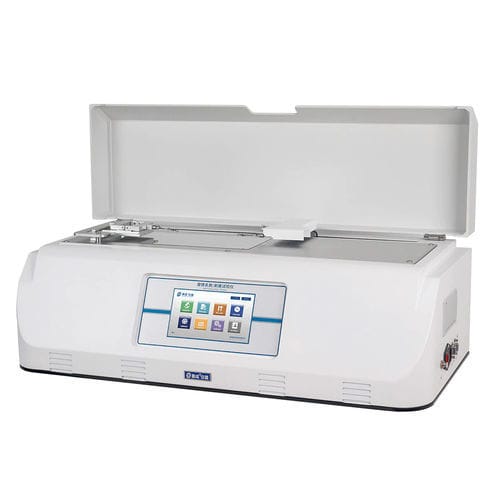

Friction testing machine X-810

peelautomaticmaterial

X-810 Friction Peel Tester can be used to test coefficient of static and dynamic friction of plastic films, sheets, foils, paper, cardboard, woven bags, fabric (fabric style test), metal-plastic composite belt for communication cable, convey belt and textile, as well as peel strength test of adhesive laminated products, medical adhesive bandage, release paper and protective films.

Product Features

• 7-inch color touchscreen with graphical user interface (GUI)
• Two test modes of coefficient of friction test and peel test.
• Wide range, high-precision temperature control device can easily test samples at different temperatures.
• Adjustable speed can meet different test conditions.
• Versatility to meet ASTM, ISO, TAPPI and GB standards
• The test table and slide block of the standard instrument are degaussed and remanence tested, which effectively reduces the system test error.
• Micro computer control, convenient for users to carry out test operation quickly.
• Professional software provides curve superposition statistical analysis of test results, which can show test results accurately and intuitively.
• Equipped with USB interface, support professional software control.
• Support the laboratory data sharing system and manage the test results and reports.

Test Principle
The two experimental surfaces are placed flat together. Under a certain contact pressure, the two planes move relatively to each other, and the required force is recorded. The weight of the slider divided by the test force is the friction coefficient.

Test Standards
X-810 friction peel tester conforms to many national and international standards:
ISO 8295, ISO 8510-2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549, GB/T 10006, GB/T 2790, GB/T 2791, GB/T 2792

Applications
Basic Applications
Plastic Films and Sheets: Coefficient of static and dynamic friction tests of plastic films and sheets
Paper and Paperboard: Coefficient of static and dynamic friction tests of paper and paperboard
Textiles, Non-woven Fabrics and Woven Bags: Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags
Rubber: Coefficient of static and dynamic friction tests of rubber products
Aluminum Foils and Aluminum Foil Composite Films: Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products
Printing Matters: Coefficient of static and dynamic friction tests of printing matters

Extended Applications
High Temperature Test: Coefficient of static and dynamic friction tests at higher temperature than room temperature
Wood and Flooring: Coefficient of static and dynamic friction tests of wood and flooring
Photographic Films: Coefficient of static and dynamic friction tests of photographic films
Screen of Mobile Phone and Leather: Coefficient of static and dynamic friction tests of mobile screens against the leather products
Adhesives: Peeling test of the adhesive products
Medical Adhesives: Peeling test of medical adhesives e.g. adhesive bandages and plasters
Protection Films: Peeling test of protection films for mobile phones or computers
Magnetic Cards: Peeling test of the films and magnetic cards

Technical Specifications

• Capacity Range: 0 ~ 5 N (Standard);10 N, 30 N (Optional)
• Accuracy: 0.5% FS
• Mass of Sled: 200g, 500g (Standard); 100g, 1000g, 1814g, 2000g (Optional)
• Test Speed: 0 ~ 600 mm/min (Adjustable)
• Test Temperature : Room Temperature ~ 99.9 °C
• Instrument Dimension: 800mm(W) x 390mm(D) x 250mm(H)
• Power Supply: AC 100-240V 50/60Hz(can be changed to local requirement)
• Net Weight: 32 kg

Configurations
Standard Configurations: Instrument, Micro Printer, Peel Test Fixture, Sled of 200g and 500g, Double-sided Adhesive (DSA)
Optional Parts: Computer, Professional Software, USB Communication Cable, Test Plate, Sample Cutter, Non-standard Sled, Non-standard Fixture

Please Note: Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
