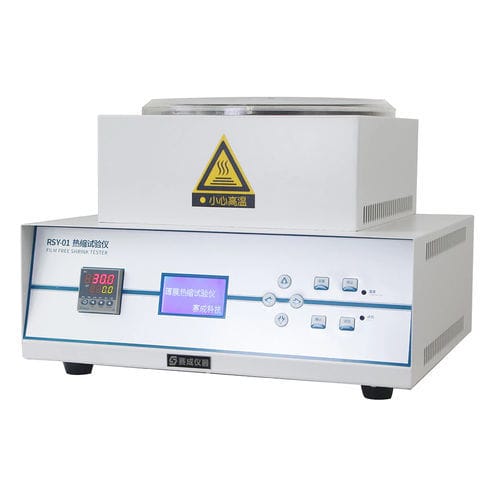

Thermal shrinkage testing machine RSY-01

automaticfor heat-shrink filmsfor plastic film

RSY-01 Film Free Shrink Tester is professionally applicable to the determination of shrinkage ratio of various films at different temperatures. Product Features: - Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation - The instrument is heated through fluid medium, which could provide the stable test environment - Automatic timer function to efficiently guarantee the accuracy of test data - The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface - Standard clamp wire mesh support could make the test done smoothly Test Standards: This test instrument conforms to many national and international standards: GB/T 13519 Applications: Basic Applications Test the heat shrinking performance of various films in fluid medium at different temperatures, e.g. PE heatshrinkable films used for packages of liquor, mineral water and beverages as well as PVC, POF, OPS, and PET which are available for various packages. Technical Specifications: - Specimen Size: ≤140 mm x 140 mm - Temperature Range: Room temperature ~ 200°C - Accuracy: ±0.2°C - Power Supply: AC 100-240V 50/60Hz (can be changed to local requirement) - Instrument Dimension: 440 mm (W) x 370 mm (D) x 310 mm (H) - Net Weight: 24 kg Configurations: Instrument, Micro Printer, 1 Set of Clamp Wire Meshes, Clamp Wire Mesh and Clamp Wire Mesh Support Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
