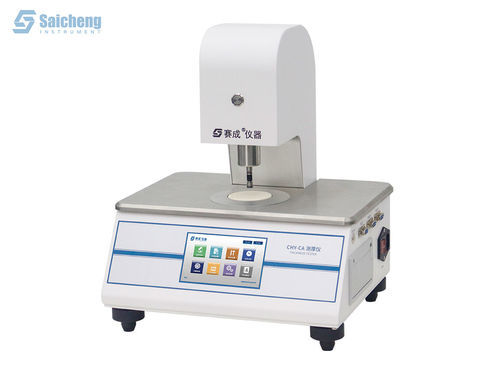

Thickness tester CHY-CA

for filmfor paperfor metal sheets

CHY-CA is a highly precise thickness tester with mechanical contact method, which can be used to measure the thickness of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, and solid insulation materials, etc. - Strictly follow the standard design of the contact area and measurement pressure, and support various non-standard customization; - The measuring head automatically rises and falls during the test, effectively avoiding system errors caused by the manual operation; - Two test modes, automatic and manual, which is convenient for users to choose freely; - Optional autosampler supports and the relevant parameters setting such as sampling step, number of measurement points and sampling speed; - Real-time display of analysis data such as the maximum, minimum, average, and standard deviation; - Standard gauge blocks for system calibration assured the test accuracy and data consistency; - Microcomputer control, LCD display, menu-type interface and PVC operation panel, which is convenient for users operation and data viewing; - The standard USB interface facilitates the external connection and data between the system and the computer. This test instrument conforms to many national and international standards: JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817, GB/T 6672, GB/T 451.3, GB/T 6547. Basic Applications: - Plastic Films, Sheets and Diaphragms - Paper and Paper Board - Foils and Silicon Wafers - Metal Sheets - Textiles and Non-woven Fabrics, e.g. baby diapers, sanitary towel and other sheeting - Solid Electrical Insulating Materials Extended Applications: - Extended Test Range of 5mm and 10mm Technical Specifications: - Test Range: 0 ~ 2 mm (Standard), 0 ~ 6 mm, 10 mm (Optional) - Resolution: 0.1 μm - Test Pressure: 17.5±1 kPa (film), 50±1 kPa (paper), 100±1 kPa (paper) - Contact Area: 50 mm (film), 200 mm (paper) - Specimen Feeding Interval: 0 ~ 1000 mm (Optional) - Specimen Feeding Speed: 0.1 ~ 99.9 mm/s - Test Pressure: 0.4 ~ 0.6 MPa (out of supply scope) - Port Size: Ф6 mm PU tubing - Instrument Dimension: 340 mm (W) x 340 mm (D) x 400 mm (H) - Power Supply: AC 100-240V 50/60Hz (can be changed to local requirement) - Net Weight: 17 kg Configurations: Instrument, Micro Printer, Standard Gauge Block, Professional Software, 485 Communication Cable, Measuring Head, Counterweight, Auto Feeding Device 1. The gas supply port of the instrument is Φ6 mm PU tubing; 2. Customers will need to prepare for gas supply. Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
