Thickness tester CHY-CA

paper and cardboardfor filmfor fabric

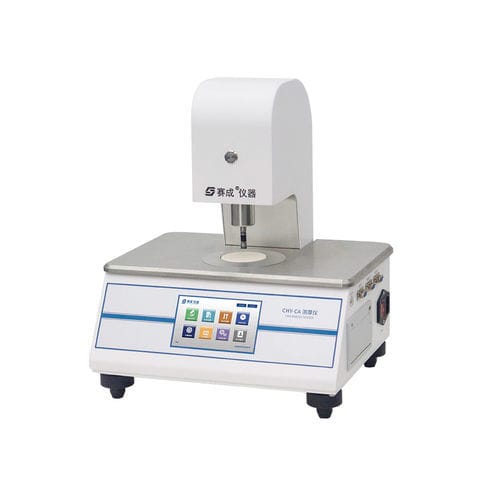

CHY-CA is a highly precise thickness tester with mechanical contact method, which can be used to measure the thickness of films, sheeting, paper, corrugated paperboard, textiles, non-woven fabrics, and solid insulation materials, etc.

Product Features

• Strictly follow the standard design of the contact area and measurement pressure, and support various non-standard customization;
• The measuring head automatically rises and falls during the test, effectively avoiding system errors caused by the manual operation;
• Two test modes, automatic and manual, which is convenient for users to choose freely;
• Optional autosampler supports and the relevant parameters setting such as sampling step, number of measurement points and sampling speed;
• Real-time display of analysis data such as the maximum, minimum, average, and standard deviation
• Standard gauge blocks for system calibration assured the test accuracy and data consistency;
• Microcomputer control, LCD display, menu-type interface and PVC operation panel, which is convenient for users operation and data viewing;
• The standard USB interface facilitates the external connection and data between the system and the computer.

Test Standards
This test instrument conforms to many national and international standards:

ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, ASTM D6988, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817, GB/T 6672, GB/T 451.3, GB/T 6547

Applications
Basic Applications
Plastic Films, Sheets and Diaphragms
Paper and Paper Board
Foils and Silicon Wafers
Metal Sheets
Textiles and Non-woven Fabrics, e.g. baby diapers, sanitary towel and other sheeting
Solid Electrical Insulating Materials
Extended Applications
Extended Test Range of 5mm and 10mm

Technical Specifications

• Test Range: 0 ~ 2 mm (Standard). 0 ~ 6 mm, 10 mm (Optional)
• Resolution: 0.1 μm
• Test Pressure: 17.5±1 kPa (film),50±1 kPa (paper)100±1 kPa (paper)
• Contact Area: 50 mm2 (film), 200 mm2 (paper), Note: Select one presser foot for film or paper; Customization is available
• Specimen Feeding Interval: 0 ~ 1000 mm (Optional)
• Specimen Feeding Speed: 0.1 ~ 99.9 mm/s
• Test Pressure: 0.4 ~ 0.6 MPa (out of supply scope)
• Port Size: Ф6 mm PU tubing
• Instrument Dimension: 340 mm (W) x 340 mm (D) x 400 mm (H)
• Power Supply: AC 100-240V 50/60Hz(can be changed to local requirement)
• Net Weight: 17 kg

Configurations
Standard Configurations: Instrument, Micro Printer, Standard Gauge Block

Optional Parts: Professional Software, 485 Communication Cable, Measuring Head, Counterweight, Auto Feeding Device

Note: 1. The gas supply port of the instrument is Φ6 mm PU tubing;
2. Customers will need to prepare for gas supply.

Please Note: Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
