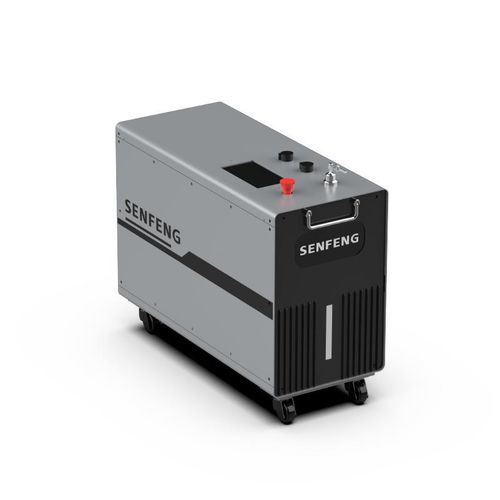

Laser welding machine SF series

manualfor carbon steelfor stainless steel

Product Overview
Portable, handheld laser welding system designed for precise spot and seam welding across a range of metals. Compact unit providing low heat input and minimal distortion, suitable for micro components and assemblies with limited weldability.

Product Description
Laser welding uses a focused laser beam to generate heat at the weld zone. Due to its optical focusing properties, laser welding is ideal for small parts and materials with challenging weldability. The Senfeng portable handheld laser welding machine features low thermal input, reduced welding deformation and stable operation unaffected by electromagnetic fields.

Technical Parameters

• SF3S — Laser power: 0.8 kW; Wavelength: 1080±10 nm; Max plate thickness: 3 mm; Filler wire diameter: 0.8–1.6 mm; Welding gun weight: ≤0.7 kg; Gun cable length: 5 m; Machine net weight: 45 kg.
• SF4S — Laser power: 1.2 kW; Wavelength: 1080±10 nm; Max plate thickness: ≤4 mm; Filler wire diameter: 0.8–1.6 mm; Welding gun weight: ≤0.7 kg; Gun cable length: 7 m; Machine net weight: 50 kg.
• SF5S — Laser power: 1.5 kW; Wavelength: 1080±10 nm; Max plate thickness: ≤5 mm; Filler wire diameter: 0.8–1.6 mm; Welding gun weight: ≤0.7 kg; Gun cable length: 7 m; Machine net weight: 55 kg.

Advantages

• Low heat input and reduced heat-affected zone to minimize distortion.
• Focused beam enables welding of small, closely spaced components.
• Compatible with a wide range of metals, including dissimilar metal joints.
• Suitable for high-speed automated processes and digital/computer control.
• No melt-back issues common to arc welding when using fine wire.
• Unaffected by magnetic fields for precise targeting.

Welding Materials

• Stainless steel
• Carbon steel
• Aluminum
• Chromium
• Nickel
• Titanium
• Other metals

Application Industry
Applicable to automotive manufacturing, electronics, food processing equipment, household appliance production and other industrial fabrication sectors.

Technical Specifications

• Model series: SF series (SF3S, SF4S, SF5S)
• Laser wavelength: 1080 ± 10 nm
• Laser power: 0.8 / 1.2 / 1.5 kW
• Sheet thickness capacity: 3 mm (SF3S); ≤4 mm (SF4S); ≤5 mm (SF5S)
• Filler wire diameter: 0.8–1.6 mm (standard)
• Welding gun weight: ≤0.7 kg
• Welding gun cable length: 5 m (SF3S) or 7 m (SF4S, SF5S)
• Machine net weight: 45–55 kg (model dependent)
• Overall dimensions (L×W×H): 670×335×590 mm
• Supported languages: 24 (including Chinese, English, Korean, Russian, Japanese, German, French)
• Power supply: Single-phase 220V, 50/60 Hz
