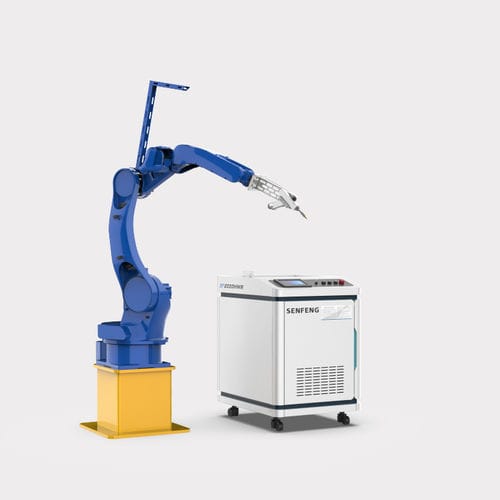

Laser welding machine

roboticfor integrationfor carbon steel

Product overview
Robotic and handheld laser welder combining handheld and robot-fed welding in a single unit. Designed for flexible production lines requiring rapid switching between manual and automated welding while supporting multiple welding methods and materials.

Key features / Advantages

• Dual-mode operation: handheld welding and robot welding with a single machine
• Quick changeover via customized fixtures and one-button switching control
• Supports multiple welding methods: laser conduction (heat conduction), deep-penetration welding and wire-fill welding
• Robot cable anti-winding mechanism enables welding at varied angles; maximum robot coverage 1730 mm
• Automated welding workflows with robot welding software for parameter management and one-button start

Technical parameters

• Model: Robotic and handheld laser welder (CRP-RH18-20)
• Laser power: 1.5 kW or 2 kW
• Robot: CRP-RH18-20
• Welding thickness: 0.5–4 mm
• Welding head: handheld, beam/spot-size adjustable

Welding materials

• Carbon steel
• Stainless steel
• Aluminum alloys
• Galvanized sheet
• Silicon steel sheet
• Electrolytic sheet
• Titanium alloys
• Manganese alloys

Application industry

• Automotive industry
• Electronics industry
• Food machinery
• Household appliances

Technical specifications

• Model: Robotic and handheld laser welder
• Laser power options: 1.5 kW or 2 kW
• Robot model: CRP-RH18-20
• Welding thickness range: 0.5–4 mm
• Welding head: handheld, beam/spot-size adjustable
• Max robot coverage: 1730 mm
• Welding methods: laser heat conduction, deep penetration, wire filling
• Operation modes: handheld and robotic with quick one-button switching
• Automation: robot welding software for parameter management and one-button start
