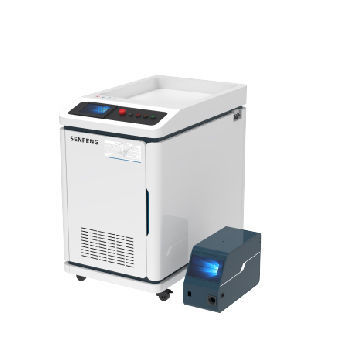

Fiber laser welding machine SF1500HWM

manualfor metalfor carbon steel

Product overview
Fiber laser welding uses a high-intensity focused fiber laser beam to form metallurgical joints with high penetration and welding speed. Senfeng handheld fiber laser welding machines are designed for welding metal plates and tubes in industrial production and maintenance contexts. They combine compact gun ergonomics with centralized power units suitable for workshop use.

Main features

• High efficiency: welding productivity typically increases 2–10× compared with conventional arc methods.
• High quality: narrow, smooth weld seams often requiring little or no post‑grinding.
• Lower operating cost: replaces multiple arc welders and can reduce power consumption by 80%–90%.
• Flexible operation: 360° maneuverability of the hand gun; operable after brief operator training.
• Multifunctional: multiple welding modes (with or without filler wire); optional thin‑steel cutting capability.
• Multilingual UI: supports many interface languages for global deployment.

Technical parameters (table)
Model | SF1500HWM | SF2000HWM | SF3000HWM
Laser Power (kW) | 1.5 | 2 | 3
Laser Wavelength (nm) | 1080±10 | 1080±10 | 1080±10
Thickness of Welding Sheet (mm) | ≤4 | ≤5 | ≤7
Diameter of Filler Wire (mm) | 0.8–1.6 (standard) | 0.8–1.6 (standard) | 0.8–2 (standard)
Weight of Welding Gun (kg) | ≤0.7 | ≤0.7 | ≤0.7
Length of Welding Gun Line (m) | 10 | 10 | 10
Net Weight of Machine (kg) | 220 | 220 | 265
Overall Dimensions (L*W*H, mm) | 954*715*1080 | 954*715*1080 | 1210*715*1080
Languages | Supports ~24 UI languages (Chinese, English, Korean, Russian, Japanese, German, French, Spanish, etc.) | |

Laser welding vs Argon arc welding (summary table)
Comparison item | Laser welding | Argon arc welding
Welding method | Spot welding or continuous | Spot welding
Applicable materials | Stainless steel, carbon steel, galvanized sheet, aluminum, etc. | Stainless steel, carbon steel, galvanized sheet
Thickness requirements | 0.5–4 mm | 1–12 mm
Workpiece deformation/undercut | Small | Large
Welding speed | 0–8 m/min | 0–1 m/min
Subsequent processing | Light or no sanding | Requires polishing
Operation difficulty | Simple | Complex
Safety and environmental protection | Relatively safe and environmentally friendly | Less safe and less environmentally friendly
Labor costs | Can be operated by general workers after brief training | Requires experienced welder
Wearing parts | Lens, nozzle | Argon
Supplies | Argon/Nitrogen | Argon

Technical specifications

• Models available: SF1500HWM, SF2000HWM, SF3000HWM.
• Laser power options: 1.5 kW, 2 kW, 3 kW.
• Wavelength: ~1080 nm (1080±10 nm).
• Recommended welding thickness: up to 4 mm (1.5 kW), up to 5 mm (2 kW), up to 7 mm (3 kW).
• Filler wire diameter: standard 0.8–1.6 mm (up to 2 mm for 3 kW).
• Welding gun weight: ≤0.7 kg; gun cable length ~10 m.
• Machine net weight: 220–265 kg depending on model.
• Machine dimensions: 954×715×1080 mm (1.5/2 kW), 1210×715×1080 mm (3 kW).
• UI supports many languages (localized for global customers).
• Multifunctional: multiple welding modes, optional wire feed, can perform thin‑steel cutting.
