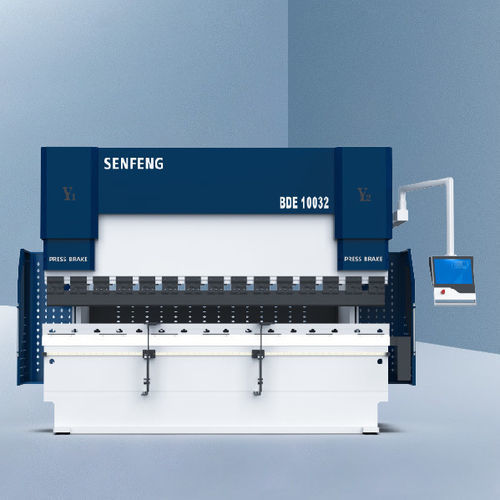

Electro-hydraulic press brake BDE10032

CNC4-axis6-axis

Overview
SENFENG BDE series provides simple and safe operation for sheet metal bending. The electro-hydraulic hybrid CNC bending machine delivers high accuracy and fast response to meet industrial production requirements.

Highlights / Key Features

• Optimized column spacing (side rack spacing) to ensure performance, efficiency and precision
• Mechanical crowning (V-axis) to compensate deflection and improve bending accuracy
• 4 back-gauge fingers design for convenient and flexible positioning, reducing manual operations and improving repeatability
• German REXROTH hydraulic system with high-frequency response (~12 ms) for precise and efficient hydraulic control
• Different CNC axis configurations available to match bending needs (standard 4+V; optional 6+V / 8+V)
• Standard DELEM-DA53T control; ESA and CYB controls optional
• Optional DSP laser safety protection device to protect operators from rapid ram movement
• Optional robotic feeding cell for automatic feeding to reduce labour dependence and increase productivity

Bending Materials

• Stainless steel
• Carbon steel
• Galvanized sheet
• Fluoro-aluminum-zinc sheet
• Copper
• Aluminum
• Brass

Technical Parameters

• Model: BDE10032
• Maximum bending force: 1000 kN
• Bending length (A): 3200 mm
• Width between columns (B): 2600 mm
• Throat depth (E): 400 mm
• Open height (D): 480 mm
• Slide block speeds: Approach 180 mm/s; Bend 0–10 mm/s; Return 160 mm/s
• Main motor power: 7.5 kW
• Dimensions (L×W×H): 3700 × 1930 × 2630 mm
• Machine weight: 6600 kg
• Bending capacity (based on 3000 mm): ≤ 3 mm carbon steel; ≤ 2 mm stainless steel; ≤ 4.5 mm aluminum
• Optional systems and features: DELEM-DA53T control (standard), ESA / CYB control (optional), mechanical crowning (V-axis), CNC axis configurations (4+V standard; 6+V / 8+V optional), German REXROTH hydraulic system, DSP laser safety protection, robotic feeding cell
