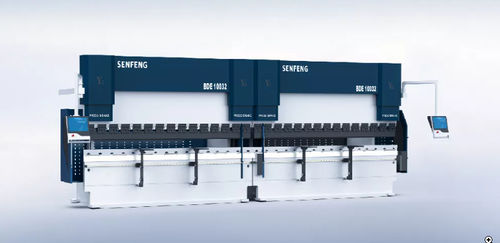

Electric press brake BDE10032

CNC3-axistandem

Overview
The Tandem CNC press brake enables synchronized control of two identical press brakes for concurrent operation, allowing bending of long and ultra‑long sheets. It also supports independent operation of each machine for production flexibility. Designed for industrial sheet metal fabrication requiring extended bending length and maintained precision.

Highlights

• Doubled bending length through tandem operation
• Increased throughput compared with a single machine setup
• Maintained bending accuracy during synchronous operation

Key Features

• Synchronization device to control two press brakes concurrently for ultra‑long sheet bending
• Selectable single‑machine or tandem synchronous modes for flexible workflows
• Multi‑axis backgauge with worm and worm‑gear transmission for precise X/Y/Z positioning
• Four backgauge fingers to reduce sheet sagging and improve forming consistency
• Deflection compensation using multi‑group wedge blocks and multiple compensation points to minimise bending deviation
• DELEM‑style CNC control with touch TFT interface, tooling and material libraries, advanced Y‑axis algorithms and offline profile software (Profile‑T) with USB interface

Technical Parameters
Model: BDE10032-10032 | BDE60060-60060
Maximum bending force: 1000 kN | 6000 kN
Bending length (A): 3200×2 mm | 6000×2 mm
Width between columns (B): 2600 mm | 4800 mm
Throat depth (E): 400 mm | 600 mm
Open height (D): 480 mm | 670 mm
Speed:
  Approach: 180 mm/s | 90 mm/s
  Bend: 0–10 mm/s | 0–7 mm/s
  Return: 160 mm/s | 90 mm/s
Main motor power: 7.5 kW | 45 kW
Dimensions (L×W×H): 3700×1515×2630 + 3700×1515×2630 | 6200×2700×4750 + 6200×2700×4750
Weight: 7800×2 kg | 52000×2 kg

Models & Specifications

• Model BDE10032 — Max bending force 1000 kN; bending length 3200×2 mm; width between columns 2600 mm; throat depth 400 mm; open height 480 mm; main motor 7.5 kW; dimensions 3700×1515×2630 (per machine); weight 7800 kg (per machine)
• Model BDE60060 — Max bending force 6000 kN; bending length 6000×2 mm; width between columns 4800 mm; throat depth 600 mm; open height 670 mm; main motor 45 kW; dimensions 6200×2700×4750 (per machine); weight 52000 kg (per machine)
• Synchronization device for concurrent two‑machine control to enable ultra‑long sheet bending
• Multi‑axis backgauge with 4 fingers and fast X‑axis positioning (up to 500 mm/s)
• Deflection compensation with multi‑group wedge blocks for improved precision
• DELEM‑style CNC with touch interface, tooling/material libraries, advanced Y‑axis algorithms and Profile‑T offline software
