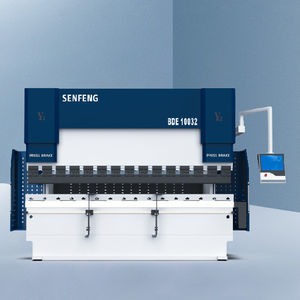

Electro-hydraulic press brake BDE 10032

CNC6-axisrobotic

Product Overview

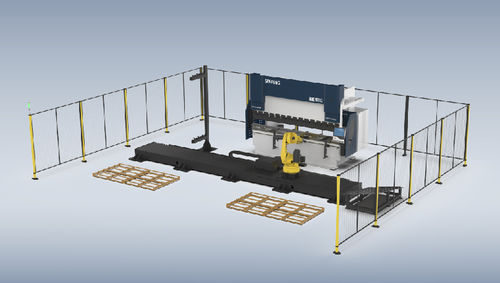

The BDE10032 is a robot-assisted CNC press brake engineered for continuous batch production. It integrates an industrial robot as the primary execution unit to automate loading, positioning, flipping and transfer of sheet metal, minimizing manual intervention and ensuring consistent part quality during long production runs.

Robot Functionality
The industrial robot handles sheet loading/unloading, live-position adjustment and sheet rotation. Its built-in trajectory-following algorithms enable fast, cooperative motion with the bending machine for synchronized operation.

• Max working radius: 2565 mm
• Max load: 80 kg
• Degree of freedom (DOF): 6

Bending Accuracy & Compensation
The deflection compensation system actuates multi-group wedge blocks after the control system calculates required corrections, counteracting beam crookedness or distortion to minimize variation between bends.

• Mechanical compensation
• Multi-group wedge blocks
• Multiple compensation points
• Minimal compensation dead zone

Hydraulic & Drive System
High-performance electro-hydraulic actuation provides precise, responsive control for bending cycles.

• German REXROTH hydraulic system for accurate closed-loop control
• 12 ms high-frequency response for straightforward commissioning
• Compact, lightweight construction with fast dynamic response
• Stepless power adjustment; supports frequent starts and stops

Control System
Advanced CNC control with graphical HMI and automatic calculation features for safe, efficient programming.

• DELEM CNC system with 10.1-inch TFT touch screen
• 2D graphic programming
• Five-axis linkage for high-precision bending
• Automatic calculation of bending pressure and collision detection

Additional Notes
The integrated robot enables mechanized loading/unloading and sheet handling to increase throughput and reproducibility in batch production.

Specifications / Technical data

• Model: BDE 10032
• Maximum bending force: 1000 kN
• Bending length (A): 3200 mm
• Side rack spacing (B): 2600 mm
• Throat depth (E): 400 mm
• Maximum cylinder stroke: 200 mm
• Distance between table and upper beam (D): 480 mm
• Speed: Down speed: 180 mm/s; Working speed: 0–10 mm/s; Return speed: 160 mm/s
• Main motor power: 7.5 kW
• Dimensions (L×W×H): 3700 × 1505 × 2630 mm
• Weight: 7600 kg
• Bending thickness (note: calculated by bending length of 3000 mm): ≤ 3.5 mm carbon steel; ≤ 2.5 mm stainless steel; ≤ 5 mm aluminum
