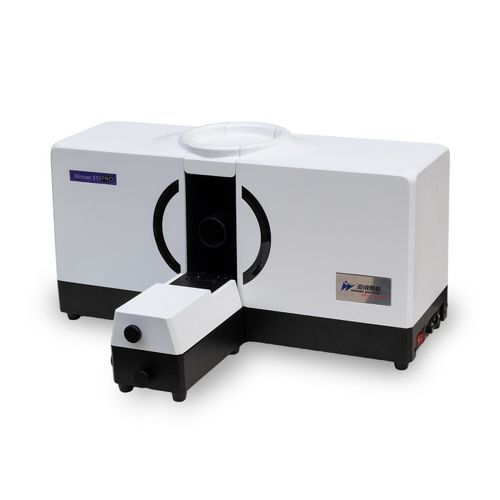

Laser diffraction particle size analyzer Winner311PRO

opticallaserfor the pharmaceutical industry

Product Overview
The Winner311PRO is a benchtop spray laser particle size analyzer developed by Jinan Winner for small spray devices. It detects droplet size distribution for pharmaceutical, chemical and materials applications. The Winner311PRO Intelligent model includes an intelligent control platform for one‑click automated operation and data management. A built‑in GMP‑compliant audit trail ensures traceability and data compliance. Suitable for pharmaceutical production and high‑standard QC laboratories.

Main Specifications - General
Model Name: Winner311PRO
Principle: Fraunhofer diffraction principle
Instrument Structure: All‑in‑one instrument
Sampling Mode: Open style
Intelligent Testing Platform: Linkage testing. Test positions can be configured via Standard Operating Procedures (SOPs), saved and recalled with one click.
Outer Dimension: L720 × W620 × H370 mm
Net Weight: 30 kg

Measurement Size
Measurement Range: 0.1–100 μm
Number of Channels: 80 pcs
Accuracy Error: ≤1.0% (CRM D50)
Repeatability Error: ≤1.0% (CRM D50)
Testing Area Length: 60 mm (Adjustable)

Optics
Light Source: Semiconductor laser λ = 650 nm, P > 2 mW
Optical Bench Alignment System: Automatic alignment

Software Functions
Analysis Pattern: Free distribution, R‑R distribution, log‑normal distribution, and statistical category models.
Statistical Methods: Volume distribution and number distribution to meet different industry needs.
Statistical Comparison: Compare and analyze multiple test results to highlight differences between batches, process stages and time periods for quality control.
Custom Analysis: User‑defined parameters; compute percentages by particle size, particle size by percentages, or percentages for specified size ranges.
Test Report: Exportable formats: Word, Excel, image (.bmp), text (.txt), PDF.
Language: Chinese and English interface (other languages available on request).
Smart Mode: Automated testing mode to reduce operator workload and improve repeatability.
Other Function: GMP (Optional).

Advantages

• Patented unconstrained free‑fitting software analysis for more accurate particle size distribution representation.
• Compact open tubular test area for small footprint, flexible placement and convenient testing.
• Single‑beam parallel light path with dual‑lens dual‑array detector increases detector count and improves optical layout for higher accuracy, lower measurement limit and better resolution.
• Airflow protection device protects the optics from droplet contamination and extends instrument service life.
• Spray‑triggered particle size testing enables instant measurement and immediate data.
• Three software distribution modes (free, R‑R, log) to cover cross‑industry particle sizing needs.
• External automatic mobile platform: SOP‑controlled test positions allow fixed distance testing with one‑click move/return to reduce manual error and improve repeatability.

Application

• Medical nebulizers
• Nasal sprays
• Respiratory nebulizers
• Ultrasonic nebulizers
• Facial steamers
• Aromatherapy devices
• Anesthesia nebulizers
• Oxygen concentrators

Patent Technology

• Optical bench design: patent No. ZL 2014 2 0378380.8.
• Three‑dimensional optical bench alignment system: patent No. ZL 2013 2 0835882.4.
• MIE scattering principle application: patent No. ZL 2013 2 0812021.4.
• Dry particle size analyzer fully sealed sample cuvette: patent No. ZL.2011 2 0267646.8.
• Dual laser beam orthogonal application: patent No. ZL 2007 2 0025702.0.
• Powder dispersion pump design: patent No. ZL 2007 2 0018648.7.
• Wet circulation installation: patent No. ZL2010 2 0593526.2.

Test Report & Output
Test reports can be exported in Word, Excel, image (.bmp), text (.txt) and PDF formats to support viewing, further data processing and citation.

Technical Specifications

• Model: Winner311PRO
• Measurement range: 0.1–100 μm
• Number of channels: 80
• Accuracy error: ≤1.0% (CRM D50)
• Repeatability error: ≤1.0% (CRM D50)
• Testing area length: 60 mm (adjustable)
• Principle: Fraunhofer diffraction
• Instrument structure: All‑in‑one
• Sampling mode: Open style
• Light source: Semiconductor laser, λ = 650 nm, P > 2 mW
• Optical bench alignment: Automatic
• Dimensions: L720 × W620 × H370 mm
• Net weight: 30 kg
• Software: multiple analysis patterns, custom parameters, statistical comparison, smart mode, Chinese/English interface
• Report export formats: Word, Excel, BMP, TXT, PDF
• Optional: GMP‑compliant audit trail and functions
