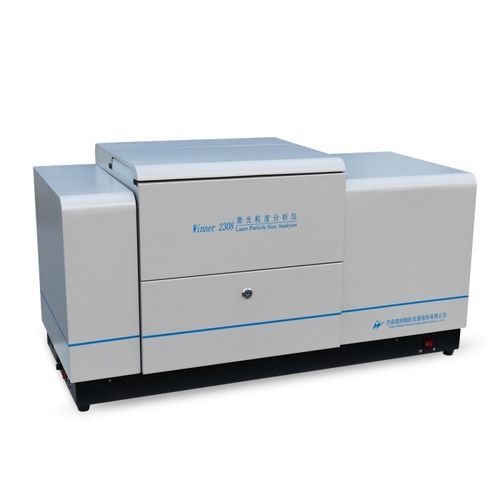

Laser diffraction particle size analyzer Winner2308A

static light scatteringfor the cosmetics industryfor the food industry

Product Overview
The Winner2308A is an intelligent, fully automatic laser particle size analyzer for integrated wet and dry measurement using laser diffraction theory (Mie and Fraunhofer). Wet measurement range: 0.01–2000 μm; Dry: 0.1–2000 μm. The system uses dual-beam, dual-spectrum detection and side light-scatter testing to provide reliable, repeatable particle size distributions for industrial quality control, research laboratories, R&D centers and testing institutions.

Measurement Range
Wet: 0.01–2000 μm; Dry: 0.1–2000 μm.

Main Specifications
Model: Winner2308A
Principle: Mie and Fraunhofer scattering
Detector: Log-spaced array, angles 0.015°–145°
Operation modes: Fully automatic and manual selectable
Test speed: Wet < 2 min; Dry < 1 min; data interval 500 ms
Dimensions: 1040 × 440 × 540 mm
Net weight: 58 kg
Channels: 106
Accuracy (CRM D50): Wet ≤ 0.5%; Dry ≤ 1.0%
Repeatability (CRM D50): Wet ≤ 0.5%; Dry ≤ 1.0%

Wet Dispersion
Ultrasonic: 40 kHz, 60 W (time adjustable)
Stirring: 0–3000 rpm (adjustable)
Circulation: Flow 30 L/min; Power 70 W
Water level sensor: Prevents overflow and protects the instrument
Sample tank volume: 10 mL

Dry Dispersion
Patent turbulence dispersion technology with shock-wave shear technique
Feeding speed: Adjustable (variable-speed control)
Dispersion medium: Compressed air, 0–6 bar

Optics
Light source: Red semiconductor laser λ = 639 nm, P > 3.0 mW; optional green laser λ = 405 nm, P > 2.0 mW
Optical bench alignment: Fully automatic, precision up to 0.2 μm
Optical path: Converging light Fourier-transform path
Effective focal length: 500 mm
Laser safety: Class 1

Software & Reporting
Analysis models: Raw distribution, R-R distribution, log-normal and statistical segmentation
Statistical comparison: Batch-to-batch and process-condition comparisons for quality control
Data processing: Intelligent selection of representative results and statistical analysis
Custom outputs: D1–D100, cumulative percentages, interval percentages
Export formats: Word, Excel, BMP, TXT, PDF
One-click operation: Wet — automatic sequence for water intake, degassing, dispersion, test, cleaning, data processing; Dry — automatic dust collection, air supply, feeding, test, data processing
Interface languages: Chinese and English; others on request
GMP support: Optional

Applications

• Solid powders, suspensions and emulsions
• Chemicals
• Magnetic materials
• Pharmaceuticals
• Cement and building materials
• Coatings and pigments
• Food
• Pesticides
• Nuclear industry
• Electronics and battery materials
• Paper
• Metallurgy and ceramics
• Cosmetics
• Abrasives
• Metal and non-metal powders (e.g., calcium carbonate, talc, kaolin, aluminum, rare earths)
• Catalysts, foaming agents, refractories, fillers, graphite

Advantages

• One-click switching between wet and dry modes — integrated dispersion systems
• Built-in wet and dry dispersion (mechanical stirring, ultrasonic, circulation; patented turbulence dry dispersion)
• Smart automatic workflows for one-key testing
• Concentrated light Fourier-transform optical path and dual-spectrum design
• Dual optical path and orthogonal dual-laser design to extend range and improve accuracy
• Unconstrained fitting to reflect true particle distribution

Patent Technology

• Optical bench design patent No. ZL 2014 2 0378380.8
• 3D optical bench alignment patent No. ZL 2013 2 0835882.4
• Mie scattering application patent No. ZL 2013 2 0812021.4
• Sealed sample cuvette patent No. ZL.2011 2 0267646.8
• Dual laser beam orthogonal application patent No. ZL 2007 2 0025702.0
• Powder dispersion pump design patent No. ZL 2007 2 0018648.7
• Wet circulation installation patent No. ZL2010 2 0593526.2

Technical specifications

• Model: Winner2308A
• Measurement range (wet): 0.01–2000 μm
• Measurement range (dry): 0.1–2000 μm
• Detection channels: 106
• Accuracy (CRM D50): Wet ≤ 0.5%; Dry ≤ 1.0%
• Repeatability (CRM D50): Wet ≤ 0.5%; Dry ≤ 1.0%
• Wet dispersion: Ultrasonic 40 kHz/60 W (adjustable); Stir 0–3000 rpm; Circulation 30 L/min, 70 W; Sample tank 10 mL; water level sensor
• Dry dispersion: Patented turbulence dispersion; compressed air 0–6 bar; adjustable feed speed
• Optics: Red laser λ=639 nm P>3.0 mW; optional green laser λ=405 nm P>2.0 mW; effective focal length 500 mm; Class 1
• Detector: Log-spaced array, angle 0.015°–145°
• Operation modes: Full automatic and manual
• Test speed: Wet < 2 min; Dry < 1 min; data interval 500 ms
• Dimensions: 1040 × 440 × 540 mm
• Net weight: 58 kg
• Software outputs: D1–D100, interval & cumulative distributions, histograms/curves, exportable reports (Word, Excel, BMP, TXT, PDF)
• Interface languages: Chinese and English (others on request)
• GMP: Optional
