Optical particle size analyzer Winner3006

laserlaser light scatteringfor the pharmaceutical industry

Product Overview

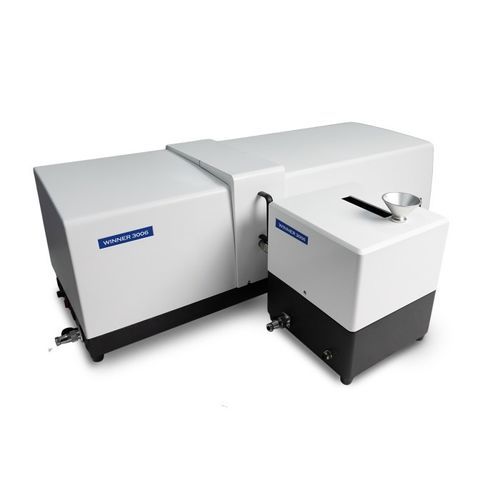

Winner3006 is a universal dry-dispersion laser particle size analyzer for precise measurement of particle size in dry powder samples. It uses Mie scattering theory with a converging Fourier-transform (folded) optical path, a high-performance laser (λ = 639 nm, P > 2 mW) and a high-sensitivity photodetector ring to ensure accurate and repeatable results. The instrument uses air as the dispersion medium and a patented turbulent dispersion device combined with a high-precision feeder, powder spray pump and oil-free silent gas source to achieve full dispersion of samples.

Main Features

• Universal dry dispersion system with patented turbulent dispersion technology for thorough particle separation.
• One-click automated SOP operation: automatic dust removal, air supply, feeding, testing and data processing.
• High-performance laser light source (λ = 639 nm, P > 2 mW) with Class 1 laser safety.
• Converging Fourier-transform optical path and multi-angle detector arrangement to collect scattering across the measurement range.
• Automatic optical bench alignment (3D alignment via precise hybrid stepper motors) for stable optical path.
• Unconstrained free-fitting algorithms for accurate representation of true particle distributions.
• High-speed data acquisition (up to 10 kHz) and fast test times (as quick as 10 seconds).

Applications
Winner3006 is suitable for cement, ceramics, pharmaceuticals, dyes and pigments, fillers, chemicals, catalysts, coal dust, additives, pesticides, explosives, graphite, photographic materials, fuels, metal and non-metal powders, calcium carbonate, kaolin and similar powder industries. It is especially recommended for materials that react or change in liquid, magnetic powders, herbs and powders with wide distributions or larger particle sizes.

Main Specifications
General
Model Name: Winner3006
Principle: Mie scattering
Test Speed: Fastest 10 seconds
Refractive Index: User-selectable across a wide range
Sampling Frequency: Up to 10 kHz
Outer Dimension: Main unit 1030×450×325 mm; Dry module 260×245×295 mm
Net Weight: Main unit 33 kg; Dry module 7 kg
Operation Mode: SOP fully automated one-click operation

Measurement Size
Measurement Range: 0.1–600 μm
Number of Channels: 49
Accuracy Error: ≤1.0% (CRM D50)
Repeatability Error: ≤1.0% (CRM D50)
Dispersion: Turbulent dry dispersion with automatic sample introduction and one-click testing

Optics
Light Source: Laser λ = 639 nm, P > 2 mW
Optical Bench Alignment System: Automatic 3D alignment
Optical Path: Converging Fourier-transform (folded optical path)
Laser Safety: Class 1

Software Functions
Analysis Modes: Free distribution, R-R distribution, log-normal and other statistical models
Statistical Comparison: Batch or process-stage comparison across multiple results
Data Processing: Intelligent statistical analysis to output representative results
Custom Analysis: Custom characteristic sizes D1–D100, cumulative percentages and ranges per industry standards
Output: Characteristic particle sizes, differential and cumulative distributions, histograms/curves and data exports
Report Export: Word, Excel, image (BMP), text (TXT) and PDF
One-click Operation: Automatic dust collection, air supply, feeding, testing and data processing
Interface Languages: Chinese and English (additional languages available on request)
GMP: Optional

Advantages & Patent Highlights

• Intelligent operating system enabling one-click testing for consistent repeatability.
• Patented turbulent dispersion and Normalshock shearing effect with wear-resistant ceramic dispersion core for extended lifetime and stable dispersion.
• Automatic optical bench alignment via precise hybrid stepper motors for micron-level positioning.
• Converging Fourier-transform optical design with multi-angle detectors for comprehensive scattering collection.
• Multiple protected technologies including sealed sample cuvette for dry analysis, dual-beam laser arrangement and specialized powder dispersion pump design.

Technical Specifications

• Model Name: Winner3006
• Measurement Range: 0.1–600 μm
• Principle: Mie scattering
• Number of Channels: 49
• Test Speed: Fastest 10 seconds
• Sampling Frequency: Up to 10 kHz
• Accuracy Error: ≤1.0% (CRM D50)
• Repeatability Error: ≤1.0% (CRM D50)
• Dispersion Method: Turbulent dry dispersion with automatic sample introduction
• Light Source: Laser λ = 639 nm, P > 2 mW (Class 1)
• Optical Path: Converging Fourier-transform (folded optical path)
• Optical Bench Alignment: Automatic 3D precise alignment
• Outer Dimensions: Main unit 1030×450×325 mm; Dry module 260×245×295 mm
• Net Weight: Main unit 33 kg; Dry module 7 kg
• Operation Mode: SOP fully automated one-click operation
• Software Outputs: Differential & cumulative distributions, characteristic sizes D1–D100, exportable reports (Word, Excel, PDF, BMP, TXT)
