Laser diffraction particle size analyzer Winner3008A

laser light scatteringlaserfor research

Overview

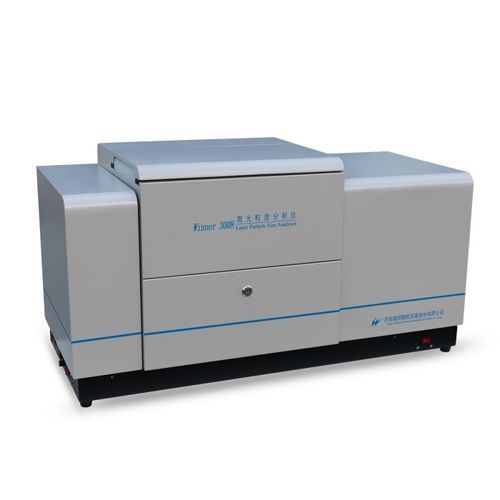

Winner3008A is a laser particle size analyzer with a dry dispersion unit, offering both manual and fully automatic operation modes. Based on Mie scattering and a converging-light Fourier-transform optical path, it uses a high-performance laser and a sensitive ring photodetector array to deliver high repeatability and accuracy. The instrument disperses samples in compressed air using a patented turbulent dispersion method, precision feeder and powder-spray pump, with an oil-free silent gas source to ensure complete dispersion of dry powders, including materials sensitive to liquids.

Key Features

• Selectable full automatic or manual operation modes.
• Patented dry-turbulence dispersion ensuring thorough powder dispersion.
• Mie scattering with converging-light Fourier transform optical path for wide-range, accurate measurement.
• High-performance red semiconductor laser (639 nm) and optional auxiliary green laser (405 nm).
• Log-spaced detector array covering 0.015°–145° for comprehensive scattering collection.
• Oil-free silent gas source, precision feeding device and patented powder spray pump.
• Automatic optical bench alignment with precision up to 0.2 μm.
• One-click automatic workflow: dust collection, air supply, feeding, testing and data processing.

Main Specifications (General)
Model Name: Winner3008A
Principle: Mie scattering
Detector Arrangement: Log-spaced array, angles 0.015°–145°
Operation Mode: Full automatic / manual
Full Test Speed: <1 min; result interval: 500 ms
Outer Dimensions: 1040 × 440 × 540 mm
Net Weight: 58 kg

Measurement Size
Measurement Range: 0.1–2000 μm
Number of Channels: 106
Accuracy Error: ≤1.0% (CRM D50)
Repeatability Error: ≤1.0% (CRM D50)
Dispersion: Patented dry-turbulence dispersion and normal shock shear technique
Feeding Speed: Adjustable (variable speed knob)
Dispersion Medium: Compressed air, 0–6 bar

Optics
Light Source: Red semiconductor laser (λ = 639 nm, P > 3.0 mW); optional green laser (λ = 405 nm, P > 2.0 mW)
Optical Bench Alignment: Fully automatic, precision up to 0.2 μm
Optical Path: Converging-light Fourier transform
Effective Focal Length: 500 mm
Laser Safety: Class 1

Software Functions

• Analysis modes: free distribution, R-R distribution, log-normal and statistical models.
• Statistical comparison across batches, process stages or time points.
• Intelligent data processing to produce representative test results.
• Custom outputs for any D1–D100 values and cumulative percentages for thresholds or ranges.
• Outputs: typical particle sizes, differential and cumulative distributions, histograms and curves.
• Report export: Word, Excel, BMP, TXT, PDF.
• One-click automatic operation for integrated test workflow.
• Interface languages: Chinese and English; additional languages on request.
• GMP option available.

Advantages

• Flexible operation: manual and full-automatic modes to suit lab and production use.
• Scientific dispersion system with patented turbulence and shock-shear for sufficient dispersion; wear-resistant ceramic components extend service life.
• Automatic optical alignment with micron-level stepping for stable optical path.
• Advanced optical path and multi-angle detection for accurate, reliable measurements across the entire range.
• Comprehensive reporting: D10, D50, D90 and customizable D0–D100 outputs.
• High-speed data acquisition and free-fitting inversion combined with intelligent statistics for repeatable results.

Applications

• Suitable for cement, ceramics, pharmaceuticals, pigments/dyes, fillers, chemicals, catalysts, brazing powders, dusts, additives, pesticides, explosives, graphite, photosensitive materials, fuels, metal and non-metal powders, calcium carbonate, kaolin, coffee and similar powders.
• Particularly suited to powders that react with liquids or change properties/shape in wet media (e.g., certain herbal extracts, magnetic materials).

Patent Technology

• Optical bench design: patent ZL 2014 2 0378380.8.
• 3D optical bench alignment system: patent ZL 2013 2 0835882.4.
• Mie scattering application: patent ZL 2013 2 0812021.4.
• Sealed sample cuvette for dry analyzer: patent ZL.2011 2 0267646.8.
• Dual laser beam orthogonal application: patent ZL 2007 2 0025702.0.
• Powder dispersion pump design: patent ZL 2007 2 0018648.7.
• Wet circulation installation: patent ZL2010 2 0593526.2.

Technical Specifications

• Model Name: Winner3008A
• Measurement Range: 0.1–2000 μm
• Principle: Mie scattering
• Detector Arrangement: Log-spaced array, 0.015°–145°
• Number of Channels: 106
• Accuracy Error: ≤1.0% (CRM D50)
• Repeatability Error: ≤1.0% (CRM D50)
• Operation Mode: Full automatic / manual
• Full Test Speed: <1 min; result interval: 500 ms
• Dispersion Method: Patented dry-turbulence dispersion, normal shock shear
• Feeding Speed: Adjustable
• Dispersion Medium: Compressed air 0–6 bar
• Light Source: Red 639 nm (>3.0 mW); optional 405 nm (>2.0 mW)
• Optical Path: Converging-light Fourier transform
• Effective Focal Length: 500 mm
• Optical Bench Alignment Precision: up to 0.2 μm
• Laser Safety: Class 1
• Dimensions: 1040 × 440 × 540 mm
• Net Weight: 58 kg
• Software Outputs: interval and cumulative distributions, histograms/curves, typical particle sizes, customizable D0–D100
• Report Formats: Word, Excel, BMP, TXT, PDF
• One-click Automatic Operation: integrated workflow automation
• Interface Languages: Chinese and English (additional languages available)
• GMP: Optional
