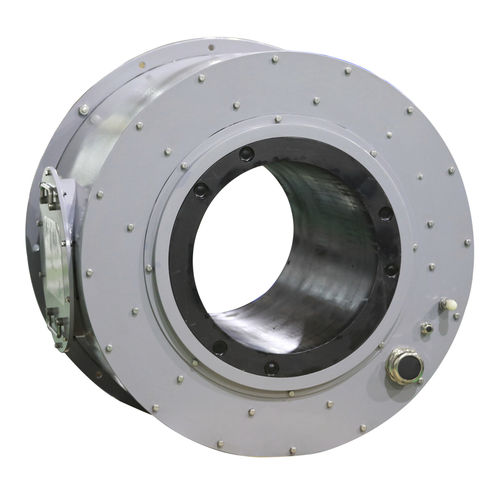

Electric slip ring LPA350-03200-01PEserialhydraulicthrough-bore
Add to favorites
Compare this product
Characteristics
- Type
- electric, serial, hydraulic
- Construction
- through-bore
- Applications
- for marine applications
- Other characteristics
- high-current, large-diameter, explosion-proof
- Voltage
380 V
- Primary current
700 A
- Rotational speed
300 rpm
(1,885 rad.min-1)- Number of channels
3 unit, 17 unit
Description
Part Number: LPA350-03200-01PE
4 circuits
Current Range: 3 circuits*200A (Power), 1 circuit* PE; Voltage of 380VDC;
Dielectric Strength: ≥1000V@50Hz between circuits(power);
Insulation: 500MΩ@500VDC;
Operating Speed:0~20rpm;
Contact: Copper graphite; Housing: Q 25 spray paint ;
Working Temperature: -40°C~+8°C; Up to 95%RH; IP66;
