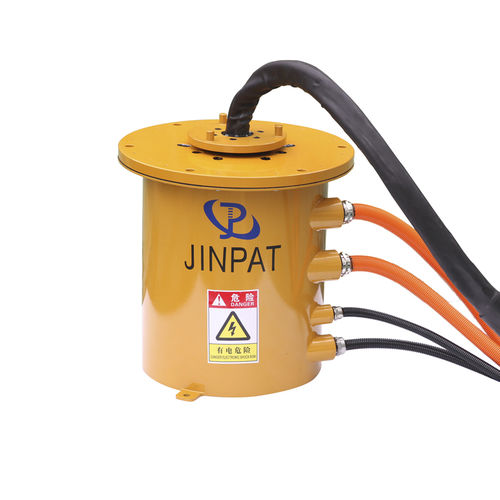

Slip ring for marine applications LPA000-02600-0440-12S

metalIP54

Features
1. Powerful Hybrid Transmission Capability
This slip ring features high circuit integration, enabling simultaneous transmission of power, signals, and data:

High Current Transmission: Equipped with two high-current channels up to 600A, meeting the power drive requirements of heavy machinery.

Multi-Loop Design: A total of 18 channels (18CKT) are combined, including power circuits (600A + 40A), general signal circuits, and a dedicated CAN-bus data bus, ensuring accurate transmission of control signals.
2. Superior Electrical Safety
The product has been deeply optimized for high voltage and complex operating conditions:

High Voltage Withstand: Rated voltage supports 450V~750VDC, insulation strength up to 2500V@50Hz, effectively preventing high voltage breakdown.

High Insulation Performance: The power ring's insulation resistance reaches 500MΩ@1000VDC, ensuring electrical stability and safety under high load operation.
3. Extreme Environmental Adaptability
Designed for outdoor and harsh working conditions:

High Protection Rating: IP67 protection rating (stator-upward installation), excellent dust and water resistance, suitable for outdoor open-air operations such as crane installations.

Wide Temperature Range: Operating temperature range from -30°C to +80°C, ensuring stable operation in both extreme cold and heat.

High Humidity Tolerance: Supports operation in high humidity environments ≤95%RH, with strong anti-condensation capabilities.
4. Solid Mechanical and Material Craftsmanship

Smooth Low-Speed ​​Operation: Designed for a speed of 0~10rpm, employing a "rotor fixed, stator rotating" working mode, conforming to the actual motion characteristics of crane slewing mechanisms.

High-Quality Contact Materials: Utilizes a combination of high-end copper carbon brushes and precious metals, ensuring high current carrying capacity while extending the wear life of signal transmission.

Rugged Housing: The housing is made of Q235 steel with a yellow paint finish, providing extremely high mechanical strength and high visibility, while also being corrosion-resistant and durable.
