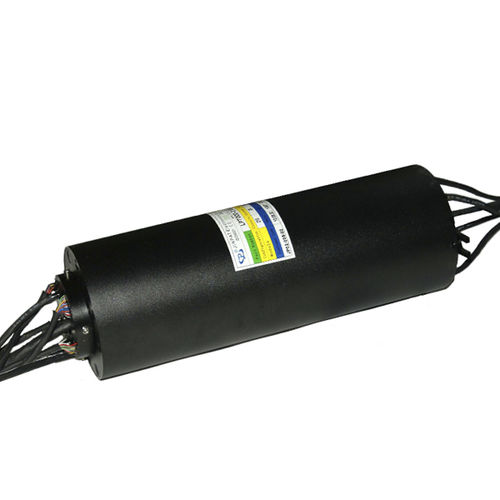

Solid-shaft slip ring LPT000-21002
for measurement instrumentsmulti-channel

solid-shaft slip ring
solid-shaft slip ring
Add to favorites
Compare this product


Characteristics

Construction
solid-shaft
Applications
for measurement instruments
Other characteristics
multi-channel

Description

Part Number: LPT000-21002 210 circuits Current Range: 210 circuits*30A; Voltage of 380VAC; Dielectric Strength: ≥1000V@50Hz between circuits; Insulation: 500MΩ@500VDC; Electrical Noise: ≤70mΩ; Wire Size: AWG26#/28# Silver plated Teflon; Operating Speed:0~100rpm; Wire Length: stator (3500mm), rotor(5000mm); Contact: Precious metal; Housing: Aluminum alloy; Working Temperature: -20°C~+60°C; Up to 60%RH; IP44;
