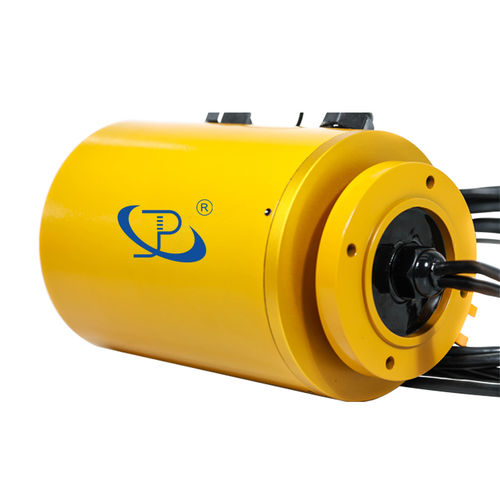

Through-bore slip ring LP60SHDelectricCAN busPROFIBUS
Add to favorites
Compare this product
Characteristics
- Type
- electric, CAN bus, PROFIBUS
- Construction
- through-bore
- Applications
- for cranes
- Material
- metal
- Other characteristics
- compact, IP65
- Voltage
240 V
- Primary current
10 A
- Rotational speed
50 rpm
(314 rad.min-1)
Description
Part Number: LPT60SHD
4circuits
Current range:2circuits*10A, 2circuits*signal; Voltage of 24VAC;
Insulation Resistance of 1000MΩ@500VDC; Wire Size: two-core twisted shielded pair(1.5mm²/1.0mm²)
Operating Speed:0~50rpm; Wire Length: stator (2500mm), rotor(1500mm);
Precious metal contact
Working Temperature: -40°C~+80°C; Up to 60%RH; IP65
