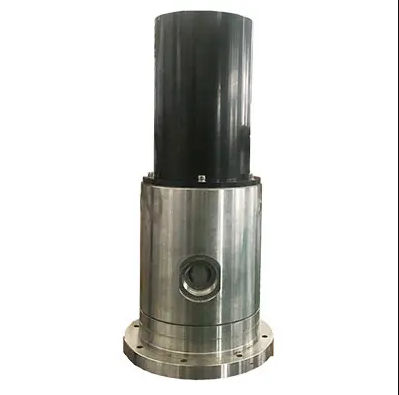

Electric slip ring DHS225-38-2Y-1F

fiber optichydraulichigh-speed

Ingiant DHS225-35-2Y-1F can hybrid transmission of hydraulic ,fiber optic and electrical ,offer 38 channels of power and signal . High quality weight around 220kg Can customized lead length ,No of circuit ,transfer medium pneumatic and hydraulic DHS225-38-2Y-1F Series Hydraulic -Fiber Optic Combined Slip Ring Description Ingiant DHS225-38-2Y-1F series hydraulic-fiber optic combined slip ring outer diameter 225 mm ,it consists of 38 channels included extract 2 way hydraulic and 1 fiber optic channel. 2 circuit of 400 amp ,housing material previous metal ,working speed 0-10 rpm ,small size and light weight. Typical Applications Oil drilling platform - ensure the continuous flow of fluids such as drilling fluids, while also ensuring that the control system can be monitored and adjusted in real time through the fiber optic interface. Chemical mechanical planarization (CMP) equipment and single crystal furnaces - provide necessary coolants or other processing liquids, and maintain a communication link with the central control system High-speed double-layer multi-sided multi-layer extrusion coater - stack size ≥ 225mm × 225mm; image alignment accuracy: ± 5μm; transmission method: roll-to-roll requirements
