Product Description

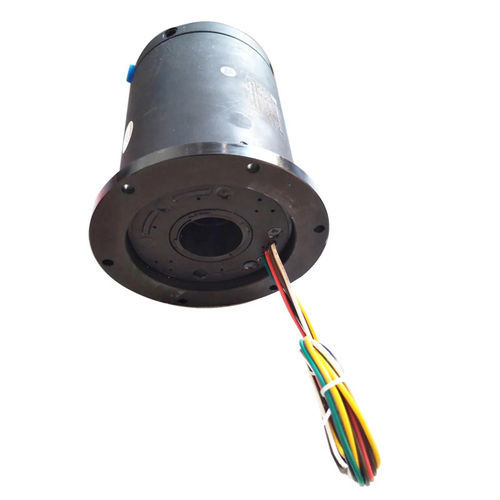

Ingiant pneumatic slip ring DHK035-6-2Q integrates electrical circuits (power/signal) with pneumatic/hydraulic passage for continuous 360° rotation. The unit has a compact through-hole design for shaft mounting and supports data and fieldbus standards including Ethernet, EtherCAT, Profibus, Profinet, CANbus and DeviceNet. Key options (number of circuits, housing material, IP rating, rotational speed, cable length, connector type, special cables, salt-mist protection, temperature range) are configurable. The housing can be mounted inverted.

Typical Applications

• Industrial machinery: machining centers, rotary indexing tables
• Heavy equipment: turret systems, cable reels, test rigs
• Packaging and palletizing machines, process equipment
• Rotary sensors, emergency lighting circuits, robotic joints
• Exhibit/display systems, medical devices requiring rotating connections

Characteristics

• Item No.: DHK035-6-2Q
• Inner diameter: 35 mm
• Outer diameter: 99 mm
• Weight: 1.25 kg
• Construction: through-hole for shaft installation
• Electric contact material: Gold-Gold, Silver-Silver, Fiber brush – Ring
• Operating speed: 0–300 RPM
• Current rating: 2 A per channel
• Voltage rating: 0–480 V (customizable)
• Channels: 2 pneumatic channels, 6 signal channels (configurable)
• Connector: lead wires and terminals (custom connector options available)
• Supports continuous transmission of power and signals with customized installation methods

Description / Manufacturer
Ingiant is a manufacturer specialized in customized slip rings with dedicated engineering, quality control and production teams. The slip ring is designed to transfer power, signal or data through rotating interfaces while enabling an inner rotating section to operate independently of the outer section, useful for mounting motors or sensors on rotating platforms without cable winding.

Features

• IP protection options from IP51 to IP65 for environments with moisture or water exposure
• Designed for transmission of precision signals, electrical power and data with low maintenance requirements

Customized Signal Type

• Solenoid valve control
• PLC connections
• RS485 / RS232 / RS422
• Thermocouple
• Sensor lines
• Pulse signals
• Encoder
• Servo systems
• CANbus
• Profibus
• CC-Link
• USB 2.0
• Ethernet / Gigabit Ethernet
• Video
• Audio/voice

Advantages

• Compact footprint for space-constrained installations
• Precision signal transmission
• Low maintenance design
• Low electrical noise
• Low torque
• Long operational lifespan

Technical Specifications

• Item No.: DHK035-6-2Q
• Inner diameter: 35 mm
• Outer diameter: 99 mm
• Weight: 1.25 kg
• Construction: through-hole, shaft installation
• Electric contact materials: Gold-Gold, Silver-Silver, Fiber brush – Ring
• Operating speed: 0–300 RPM
• Current: 2 A per channel
• Voltage: 0–480 V (customizable)
• Channels: 2 pneumatic channels, 6 signal channels (customizable)
• Connector: lead wires and terminals
