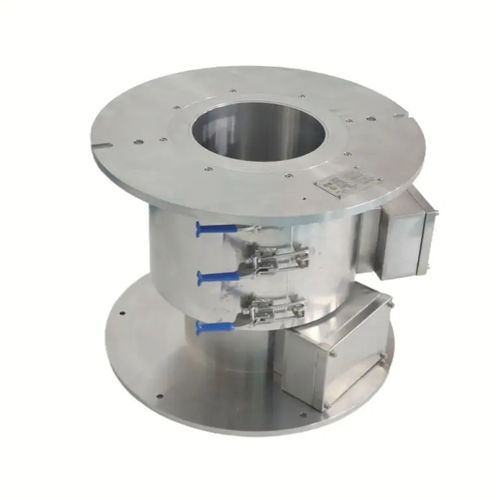

Gas slip ring DHK220Flarge-diametermulti-channelhigh-current
Add to favorites
Compare this product
Characteristics
- Type
- gas
- Other characteristics
- fiber brush, multi-channel, high-current, high-frequency, large-diameter, explosion-proof
Description
- Certification Standard Compliant with China GB 3836 explosion-proof standard Explosion-Proof Structure Intrinsically safe circuitry explosion-proof steel housing Protective Design
- – Dual-layer protection: Eliminates spark leakage
- -Sealed construction: Effectively blocks dust/gas intrusion
- Protection Rating: IP65 (dust-tight and water-resistant)
- Main Material: 304 stainless steel
- Contact Type :3rd-generation precious metal fiber brush contacts
- Transmission Performance :Synchronized power/signal transmission with no loss
- Rotational Speed Range Maximum rotational speed: 300 rpm (revolutions per minute)
- Dynamic Resistance: Dynamic resistance fluctuation ≤5mΩ (milliohms), ensuring unimpeded high-current/high-frequency data transmission
- DHK220F-20-10A series Large-Bore Explosion-Proof Slip Ring (220mm Inner Diameter, 20 Channels, 10A)
- .Certified to China’s GB3836 explosion-proof standard, this slip ring combines intrinsically safe circuitry with a flameproof steel housing for dual spark-leakage prevention. Its sealed design blocks dust/gas intrusion, with an IP65 rating ensuring harsh-condition performance. Crafted from 304 stainless steel and paired with 3rd-gen precious metal fiber brush contacts, it delivers lossless power/signal transmission. Supporting up to 300rpm rotation, its dynamic resistance stays ≤5mΩ, ensuring stable high-current/high-frequency data flow. A modular design allows customizable multi-channel media configuration, while its robust build withstands extreme environments (high temp, humidity, corrosion). Tailored for filling machines, reactor mixers, AGV explosion-proof vehicles—safe and reliable.
