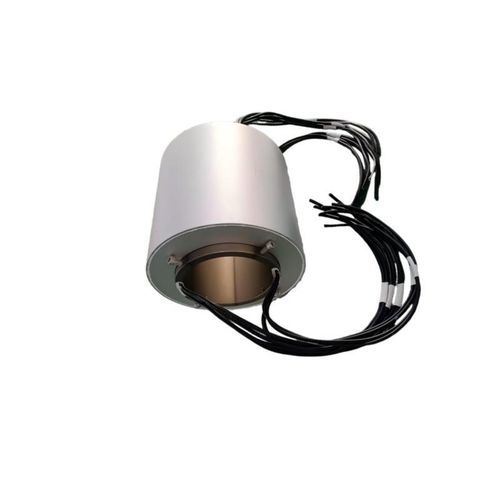

- DHK143-5-65A slip ring 143 mm ID, 5CH, 65 A per channel, D-type anti-rotation tab, IP65, aluminum alloy rotary joint
Product Overview
- The DHK143-5-65A slip ring is a high-strength rotary electrical joint independently developed by Jiujiang Ingiant Technology Co., Ltd., optimized for harsh industrial environments. It uses precious metal contact technology and an aluminum alloy housing to provide stable, reliable high-current power transmission between rotating and stationary components. Key features include a large inner bore, IP65 protection, wide operating temperature range and extended service life, suitable for high-load rotating platforms.
Complete Product Technical Parameters
Basic Model
- DHK143-5-65A
Dimension Parameters
- Inner Diameter: 143 mm (+0.1 mm tolerance)
- Outer Diameter: 258 mm
- Overall Height: 170 mm
Electrical Performance
- Number of Circuits: 5
- Rated Current: 65 A per circuit
- Rated Voltage: 380 V / 220 V / 24 V
- Insulation Resistance: ≥500 MΩ (at 1000 V DC)
- Dielectric Strength: ≥1000 V (50 Hz, between circuits)
Wire & Lead Specification
- Wire Configuration: 2 × 6 mm² parallel conductors per circuit
- Lead Wire Length: 1.5 m (stator side) + 1.5 m (rotor side)
Structural & Environmental Parameters
- Contact Material: Precious metal
- Housing Material: Aluminum alloy
- Protection Grade: IP65
- Rated Rotation Speed: 0–100 rpm
- Operating Temperature: -20°C to +80°C
- Mounting Method: Fixed by 4 × M8 bolts, equipped with D-type anti-rotation tab
Core Product Advantages
- Large through-hole design: 143 mm inner bore accommodates shafts, pipes and cable bundles for easier integration.
- High environmental resistance: IP65 rating ensures dust-tight protection and resistance to water jets for demanding industrial use.
- Stable electrical performance: Precious metal contacts minimize electrical noise and contact resistance for reliable power transmission and extended service life.
- Robust mechanical design: Aluminum alloy housing with D-type anti-rotation tab and standard bolt mounting ensures secure installation and stable operation.
Main Application Scenarios
- Construction and engineering machinery: cable reels, winding equipment
- Aerospace & defense: radar azimuth and rotating systems
- Medical: high-power rotating medical equipment
- Marine: deck machinery and offshore rotating equipment
- Other industrial sectors: customized high-current rotating power transmission platforms
Customization & Technical Support
- Customization options: expanded circuit counts, mixed power and signal channels, custom lead lengths, various connector interfaces; one-stop technical support for system integration and commissioning.
Technical Specifications
- Model: DHK143-5-65A
- Inner Diameter: 143 mm (+0.1 mm)
- Outer Diameter: 258 mm
- Overall Height: 170 mm
- Circuits: 5
- Rated Current per Circuit: 65 A
- Rated Voltage: 380 V / 220 V / 24 V
- Insulation Resistance: ≥500 MΩ (1000 V DC)
- Dielectric Strength: ≥1000 V (50 Hz, between circuits)
- Wire Configuration: 2 × 6 mm² per circuit
- Lead Length: 1.5 m stator + 1.5 m rotor
- Contact Material: Precious metal
- Housing Material: Aluminum alloy
- Protection Grade: IP65
- Rated Rotation Speed: 0–100 rpm
- Operating Temperature: -20°C to +80°C
- Mounting: 4 × M8 bolts with D-type anti-rotation tab
