Electric slip ring DHM022

capsuleindustrialvideo surveillance

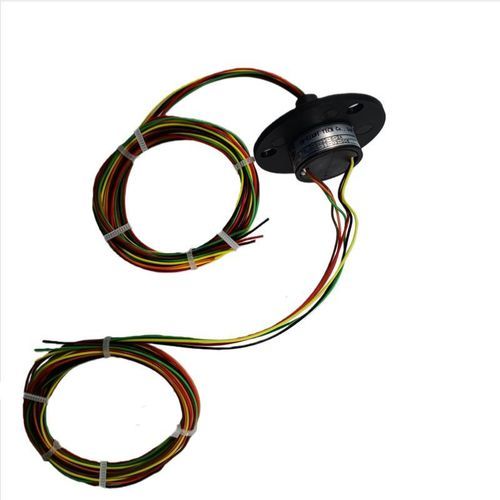

22mm series capsule slip ring Technical Parameters: - Channels: 6 - Rated Current: 2A/6 rings - Rated Voltage: 0~240VAC - Insulation Resistance: 1000MΩ @ 500VDC - Dielectric Strength: 500VAC @ 50Hz, 60s, 2mA - Dynamic Resistance Range: <10mΩ - Operation Speed: 300rpm - Operation Temperature: -20℃~+80℃ - Operation Humidity: <60%RH - IP Level: IP40 - Structural material: Engineering Plastics - Contact materials: Noble metal - Lead length: Rotor Side: 250±20mm; Stator Side: 250±20mm DHM022 series 360° unrestricted rotating capsule slip ring Out diameter: 22mm Channels: 6-36 optional Length: 25.8mm The slip ring and brush surfaces are hard gold-plated, with gold-gold contacts ensuring stable product performance and extended service life. The specially designed V-shaped groove structure of the slip ring maximizes contact area with the brush, reducing torque and contact resistance. It features 24-color coded wires for easy installation. Widely used in civilian applications such as security systems, stage lighting, automated equipment, consumer-grade smart home devices, and high-speed dome cameras. It can also be configured with parallel rings to design high-current, high-power cap-type conductive slip rings (e.g., 10A, 20A, 30A), suitable for small wind turbines, induction cookers, rotating dining tables, etc. Product Features: - Compact structural design with an outer diameter of only 22mm and length ranging from 25-56.3mm - Standard configurations of 6-36 circuits - Low starting torque: first 6 circuits below 0.06 N·m - Maintenance-free operation - Reliable performance - Low electrical noise - Easy installation - Gold-to-gold contact for extended service life Product Naming Description: 1. Product type: DH—electric slip ring 2. Installation method: M—Capsule slip ring 3. Outer diameter of capsule slip ring: 022-22 mm 4. Total circuits: 6-6 circuits 5. The rated current or it will not be marked if it passes through a different rated current for the circuits. 6. Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS056-28-5A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS056-28-5A-002; if there are more of this model in the future, and so on -003, -004, etc. DHM022-6-2A outline drawing: - Product type: Capsule slip ring - Series: DHM022 - Channels: 6 (6-36 optional) - Rated current: 2A per ring - Rated voltage: 0~240VAC - Insulation resistance: 1000MΩ @ 500VDC - Dielectric strength: 500VAC @ 50Hz, 60s, 2mA - Dynamic resistance: <10mΩ - Operation speed: 300rpm - Operation temperature: -20℃~+80℃ - Operation humidity: <60%RH - IP level: IP40 - Material: Engineering plastics - Contact material: Noble metal (gold-gold) - Lead length: 250±20mm (rotor and stator sides) - Applications: Security systems, stage lighting, automated equipment, smart home devices, high-speed dome cameras, small wind turbines, induction cookers, rotating dining tables
