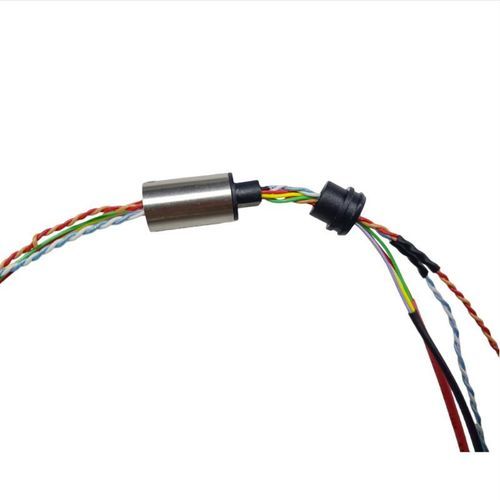

Electric slip ring DHM010-8

hollow-shaftcapsulefor robotics

10mm capsule slip ring for Collaborative Robots - Number of Circuits: 8 - Rated Current: 1A per signal circuit - Working Voltage: 0 to 24 VDC - Electrical Contact Material: Gold-to-gold - Operating Speed: 0 - 50 rpm - Protection Rating: IP51 - Structural Materials: Hollow shaft – Engineering Plastic; Main body – Zinc alloy; Housing – Stainless steel. Capsule Slip Rings – DHM Series Available for Custom, Standard OD 6.5-25 mm Ingiant offers a wide range of capsule slip rings in various sizes, featuring maintenance-free operation, gold contacts, silver fiber brushes, and low voltage characteristics. They can also be integrated with other types of rotary joints, such as Ethernet, fiber optic rotary joints (FORJ), hydraulic, and RF systems. Product Features: - Continuous Rotation: Supports 360° uninterrupted rotation for simultaneous power and signal transmission. - Multi-Signal Compatibility: Capable of transmitting control, video, HD video, Ethernet, and sensor data signals. - Military-Grade Reliability: Conforms to military standards, utilizing gold contacts and advanced fiber brush technology for maximum durability. - Superior Electrical Performance: Exhibits low torque, low insertion loss, low contact resistance, and an extended operational lifespan. - Flexible Installation: Offers configurable flange-mounted or flangeless stator options to suit various application requirements. - Modular Integration: Features a compact, structurally integrated design for simplified and quick installation. Product Naming Description: 1. Product type: DH—electric slip ring 2. Installation method: M—Capsule slip ring 3. Outer diameter of capsule slip ring: 010-10 mm 4. Total circuits: 8-8 circuits 5. The rated current or it will not be marked if it passes through a different rated current for the circuits. 6. Identify number: –XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS056-28-5A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS056-28-5A-002; if there are more of this model in the future, and so on -003 , -004, etc. - Key Specifications / Features: - Number of Circuits: 8 - Rated Current: 1A per signal circuit - Working Voltage: 0 to 24 VDC - Electrical Contact Material: Gold-to-gold - Operating Speed: 0 - 50 rpm - Protection Rating: IP51 - Structural Materials: Hollow shaft – Engineering Plastic; Main body – Zinc alloy; Housing – Stainless steel - Outer Diameter: 10mm - Series: DHM Series - Application: Collaborative Robots
