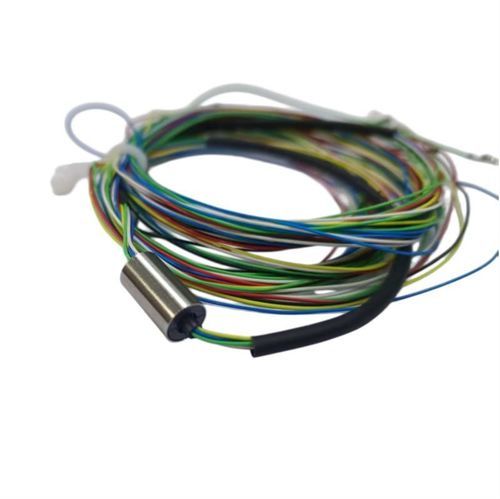

Capsule slip ring DHS006-6

for the automotive industryfor the lighting industryfor cameras

Overview
The DHS006-6 is a high-performance mini capsule slip ring engineered for reliable electrical transmission between stationary and rotating parts in compact spaces. With an ultra-small outer diameter of 6.5 mm it is designed for automotive starlight roofs, miniature robotic joints, camera gimbals and other space-constrained rotating equipment requiring stable power and signal transfer.

Short Description

• Compact 6-circuit mini capsule slip ring (outer diameter 6.5 mm).
• Rated 1 A per circuit, 48 VDC (0–48 VAC/VDC).
• Gold-to-gold contacts, IP51 protection, stainless steel housing.
• Designed for automotive starlight roofs, small robots and precision rotation applications.

Key Technical Specifications
Parameter: Value
Number of Circuits: 6 circuits (6 × 1A)
Rated Voltage: 0 – 48 VAC/VDC
Rated Current per Circuit: 1A
Insulation Resistance: ≥10 MΩ @ 100 VDC
Dielectric Strength: 100 VAC @ 50 Hz
Dynamic Resistance Variation: <30 mΩ (at 50 rpm operation)
Operating Speed: 0 – 200 rpm
Operating Temperature: -20°C ~ +65°C
Humidity: <60% RH
Protection Grade: IP51
Housing Material: Stainless Steel
Contact Material: Gold-to-Gold (low resistance, high durability)

Wiring & Connector Details

• Stator Lead Wires (Upper): 1600 ±10 mm (without connector)
• Stator Lead Wires (Lower): 2200 ±10 mm (without connector)
• Rotor Lead Wires: 450 ±10 mm (with connector)
• Wire Spec: 6-core AWG30# silver-plated PTFE insulated wire (outer diameter 0.5 mm each)
• Connectors: Stator: 2 × HC-HY-3Y; Rotor: 6 × HC-HY-3EY

Applications

• Primary Application: Automotive starlight ceiling lights (rotating fiber optic/LED modules)
• Additional Uses: Small robot joints, drone gimbals, medical rotary devices, stage lighting turntables, surveillance camera pans, and any low-speed rotating system needing compact slip ring integration

Why Choose DHS006-6?

• Ultra-compact design — only 6.5 mm outer diameter fits tight installation spaces inside vehicle interiors
• Reliable gold-gold contact — ensures stable signal transmission, minimal noise, and long service life
• Stainless steel housing — offers corrosion resistance and mechanical robustness
• IP51 rated — protects against dust ingress and dripping water, suitable for automotive cabin environments
• Flexible lead lengths — stator upper/lower differential simplifies routing during installation
• Pre-terminated connectors — reduce wiring time and errors in assembly

Technical specifications

• Model: DHS006-6
• Outer diameter: 6.5 mm
• Circuits: 6 × 1 A
• Rated voltage: 0–48 VAC/VDC
• Contact material: Gold-to-Gold
• Housing: Stainless Steel
• Protection: IP51
• Insulation resistance: ≥10 MΩ @ 100 VDC
• Dielectric strength: 100 VAC @ 50 Hz
• Dynamic resistance variation: <30 mΩ (at 50 rpm)
• Operating speed: 0–200 rpm
• Operating temperature: -20°C to +65°C
• Humidity: <60% RH
• Stator lead lengths: upper 1600 ±10 mm, lower 2200 ±10 mm
• Rotor lead length: 450 ±10 mm (with connector)
• Wire spec: 6-core AWG30# silver-plated PTFE insulated (0.5 mm each)
• Connectors: Stator 2 × HC-HY-3Y; Rotor 6 × HC-HY-3EY
