Column type lifting device MDW

devicefor conveyorconveying

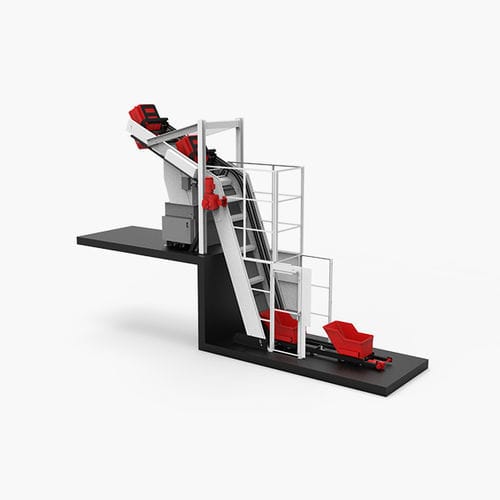

Lifting and tipping devices of the MDW series extend their application range to include incline conveying and subsequent tipping. Instead of pure horizontal conveying, this series enables lifting and displacement at the same time via an inclined conveyor. At the end point, either the tipping movement can be initiated up to 180° or the batch remains in position and is docked, emptied out, etc. Like the entire MD series, the MDW models are designed as two-column units and offer load capacities of up to 1,000 kg. In addition to the inclined conveyor path, the inlet and outlet can be designed horizontally to create a Z-batch conveyor. During the transition from horizontal travel to inclined travel, the chains are deflected by the desired angle and the guide rollers are threaded accordingly. Conveying lengths of up to 12 m are possible with these devices. These Z-conveyors are particularly suitable if the feeding location is deeper and further away from the discharge point or if, for example, containers must be filled evenly by feeding them at several points. Like the entire MD family, the MDW devices are based on a two-column design with two load bearing chains, which pull the load handling device into guide rails. Special cam tracks allow the load handling device to be tipped and thus emptied at the end point. The MDW-Series is suitable for batch transportation to several dispensing points. This way, the batch can be lifted via the machine or system and then move vertically to several points where the batch can be discharged.
