DC motor HC series
12 V14Vcompact

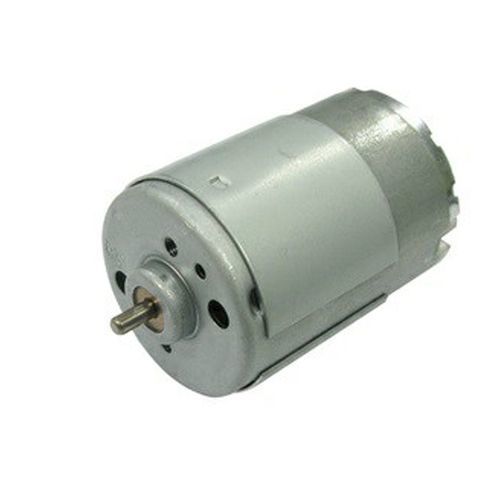

DC motor - HC series - Johnson Electric - 12 V / 14V / compact
DC motor - HC series - Johnson Electric - 12 V / 14V / compact
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 2
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 3
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 4
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 5
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 6
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 7
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 8
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 9
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 10
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 11
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 12
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 13
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 14
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 15
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 16
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 17
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 18
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 19
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 20
DC motor - HC series - Johnson Electric - 12 V / 14V / compact - image - 21
Add to favorites
Compare this product

Characteristics

Type
DC
Voltage
12 V, 14V
Configuration
compact
Protection class
EMC
Applications
for the automotive industry
Other characteristics
high-torque, low-noise, low voltage
Power

Max.: 284 W
(0.39 hp)

Min.: 0.78 W
(0 hp)

Intensity

Max.: 30 A

Min.: 0.06 A

Torque

Max.: 0.4 Nm
(0.295025 ft.lb)

Min.: 0.0027 Nm
(0.001991 ft.lb)

Rotational speed

Max.: 28,329 rpm
(177,996.3566 rad.min-1)

Min.: 165 rpm
(1,036.7256 rad.min-1)

Operating temperature

Max.: 140 °C
(284 °F)

Min.: -40 °C
(-40 °F)

Description

The Johnson Electric DC motor series is the industry benchmark for motion actuation in most automotive applications. This motor series provides a platform for custom engineering to meet the unique requirements of a vehicle platform. The reliability and overall performance of the Johnson Motor brand provides a technical benchmark of excellence. The Johnson Electric product development process continues to advance DC product line ppm performance to meet the customer’s goals. The platform motors below are examples used in the applications noted. The pdf product datasheet provides performance details of these motors.
