DC motor C series
12 Vcompacthigh-torque

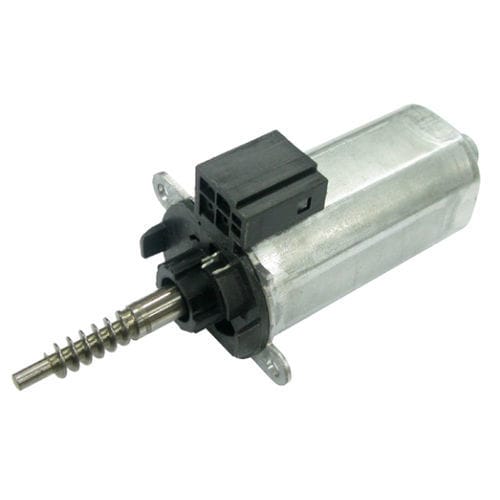

DC motor - C series - Johnson Electric - 12 V / compact / high-torque
DC motor - C series - Johnson Electric - 12 V / compact / high-torque
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 2
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 3
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 4
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 5
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 6
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 7
DC motor - C series - Johnson Electric - 12 V / compact / high-torque - image - 8
Add to favorites
Compare this product

Characteristics

Type
DC
Voltage
12 V
Configuration
compact
Other characteristics
high-torque, low-noise, high-power
Power

Min.: 11.82 W
(0.02 hp)

Max.: 79 W
(0.11 hp)

Intensity

Min.: 0.74 A

Max.: 22 A

Torque

Min.: 0.4485 Nm
(0.330797 ft.lb)

Max.: 9.65 Nm
(7.117475 ft.lb)

Rotational speed

Min.: 3,100 rpm
(19,477.8745 rad.min-1)

Max.: 9,700 rpm
(60,946.8975 rad.min-1)

Diameter

Min.: 20 mm
(0.79 in)

Max.: 50 mm
(1.97 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

The Compact DC motor series is a breakthrough development in micro motor technology. The improved power density and efficiency of the Compact DC series enables designers to create products of smaller size and lower weight. This range of compact motor platforms is custom engineered to meet the power, size, efficiency and life requirements of the customer’s application. The platform motors below are examples used in the applications noted. The pdf product datasheet provides performance details of these motors.
