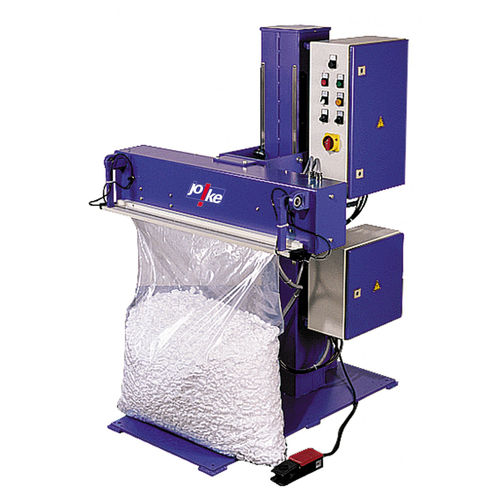

Pedal-operated impulse sealer HTMST 1000 NA

verticalbag

The HTMST NA was specifically designed for sealing film sacks. The device is individually adjustable to the desired sack size by a hand crank. The sealing and cooling times are continuously adjustable. The sealing process is triggered by a foot contact switch.  The advantages at a glance • Sealing times are infinitely adjustable • High contact pressure • Triggering of the sealing process by foot switch • All models also available in stainless steel • All models can be individually adapted to the customer’s requirements  Applications Packaging of • bedding • injection-moulded components • electronic components • whey powder • spice mixtures • screw-type caps • wine corks • and many more PRODUCT INFORMATION Item number: OS10083 Manufacturer: joke Folienschweißtechnik GmbH Group: Sack sealing devices Bar opening: 30 mm Range of action: 150 mm Film passage: 1000 mm Impulse time: continuous digitally adjustable Cooling time: continuous digitally adjustable Degree of protection: IP 54 Connected voltage: 400 V three-phase ac, 50/60 Hz Fuse: 16 A, tr?ge Dimensions (W x H x D): 1300 x 1650 x 1300 mm Weight: 140 kg
