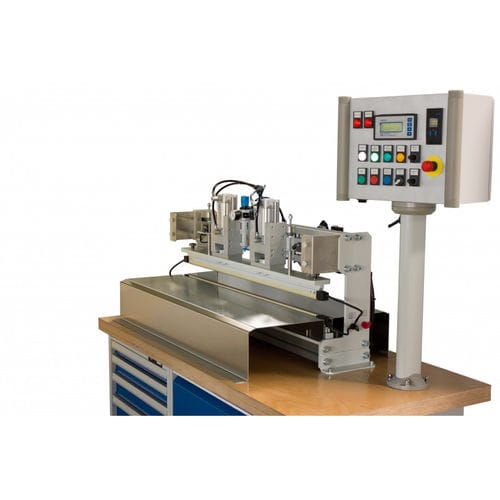

Pedal-operated impulse sealer HTP 800-R

horizontalfor filmfor laboratory applications

This special version of the joke HTP is particularly suitable for research purposes, customised productions and all areas in which rapid refitting is required or the widest array of films are to be tested. With a single click, the HTP is adjustable from time-controlled to temperature-controlled, the bars can be changed without use of tools and the sealing length is also adjustable in three settings: 400, 600 and 800 mm. A base cabinet also offers storage space for tools, bars and films. The advantages at a glance • Suitable for laboratory applications • Different heater strip geometries possible • Various sealing lengths • Digitally adjustable sealing pressure • Temperature and time-controlled • Impulse sealing process • Sealing bars rapidly changeable • Easy operation Applications • Use in quality testing laboratories for test series of different heater strip widths and geometries • Test press in film extrusion plants • Research laboratories for the packaging industry • Universities in the area of packaging and plastic films PRODUCT INFORMATION Item number: 2021575 Manufacturer: joke Folienschweißtechnik GmbH Group: Film sealing press Cylinder stroke: 50 mm Air consumption at 6 bar: 1.5 l per cycle Sealing width: max. 12 mm heated on both sides Impulse time: continuously adjustable Cooling time: continuously adjustable Actuation: foot control Connected voltage: 400 V, L1, L2, N, PE Fuse: 16 A, slow blow Degree of protection: IP 54 based on Sealing length: 400 mm / 600 mm / 800 mm Temperature: continuously adjustable Compressed air connection: required
