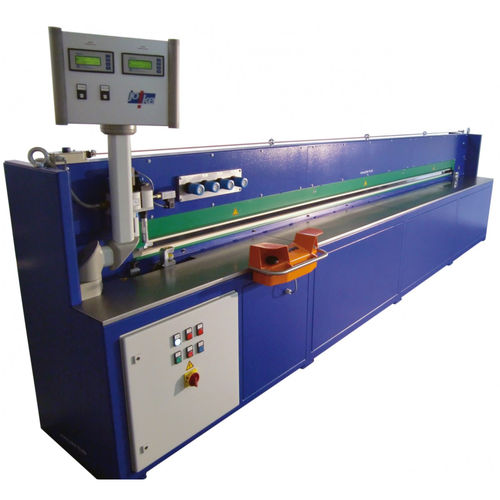

Pneumatic press HTP 4200 2R

sealingautomaticfor film

The series HTP sealing presses are above all suitable for materials that require a very high contact pressure and sealing pressure. Sealing seam lengths of up to 4200 mm and sealing seam widths of up to 10 mm are possible in this case. The advantages at a glance: • High sealing pressure • Large bar aperture • High sealing performance • Safety owing to two-hand actuation • Large selection of heater strips Applications: • Sealing of film webs made of thicker PE material (hoods) • Manufacture of inliners made of PA/PE or ALU/PE composite materials • Sealing and separation sealing of bubble pack films • Sealing in of bulky goods • Multilayer materials PRODUCT INFORMATION Item number: 2022531 Manufacturer: joke Folienschweißtechnik GmbH Group: Film sealing press Cylinder stroke: 100 mm Air consumption at 6 bar: ca. 4 l per cycle Sealing width: Standard 6 mm Impulse time: continuously adjustable Cooling time: continuously adjustable Actuation: Sealing die, pneumatic, two-hand control console Connected voltage: 400 V, 50/60 Hz Fuse: 16 A, slow-blow Degree of protection: IP 20 Working piston diameter: depends on tool-diameter Force of pressure: depends on tool-diameter Dimensions (W x H x D): 1,500 x 1,400 x 1,050 mm
