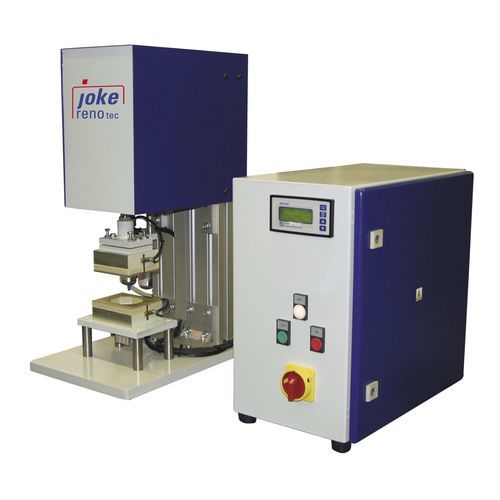

Sealing press SP 4 - DW80/S100

pneumaticverticaldigital

The SP 4 sealing press allows sealing of almost any conceivable 2-dimensional shape. This is made possible by special sealing tools, which are individually manufactured for your application. The pneumatic cylinder of the sealing press ensures the required contact pressure and therefore thicker materials can also be sealed. A pulse generator is required for the sealing press. The sealing and cooling times are adjusted here. According to requirements, the SP 4 sealing press is supplied with a temperature control. The advantages at a glance: • Can be used for almost all 2-dimensional shapes • Infinite adjustment of the sealing parameters • Can be used for the most diverse types of film • Simultaneous sealing and separation possible • High contact pressure • Each tool is manufactured individually to suit customer requirements and likewise the required pulse generator Technical data • Fuse : 16 A, slow-blow • Connected Voltage : 230 V • Operating : Foot switch • Impulse time : individually according to requirement • Pressurized air intake : 5 l/Hub • Dimension (W x H x D) : 350 mm x 750 mm x 550 mm • Degree of protection : IP 20
