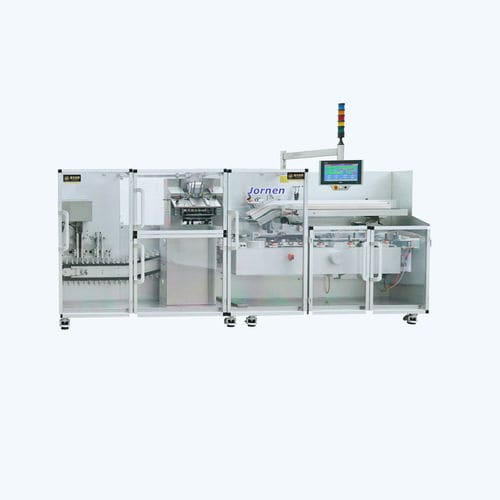

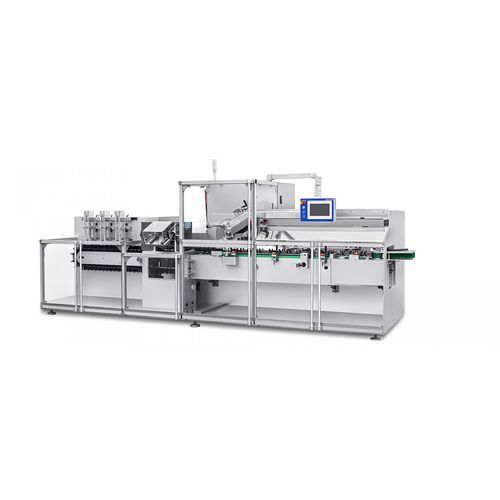

Horizontal cartoner ZH400
for the medical industryfor the pharmaceutical industryfor the food industry

horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
horizontal cartoner
Add to favorites
Compare this product


Characteristics

Type
horizontal
Applications
for the medical industry, for the pharmaceutical industry, for the food industry, for the cosmetics industry
Other characteristics
automatic, continuous-motion, high-speed, for blister packs, servo-driven, bottle, rotary, pick-and-place, tube
Throughput

Min.: 0 p/min

Max.: 400 p/min

Description

ZH400 is a Continuous Motion Cartoning Machine. It is suitable for pharmaceuticals, food, household chemicals, hardware, and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, etc. Main units of this Cartoning Machine: Gear Device: The gear drives the carton conveyor chain and blister cards conveyor chain running in continuous motion. Carton Conveyor Chain: The carton conveyor chain is used to transfer opened cartons to every station, which can automatically complete the actions of inserting blister cards and leaflets into cartons, embossing, closing of cartons, discharging cartons. Leaflet Conveyor Chain: The leaflet conveyor chain is applied to send folded leaflets to the blister feeding station then the leaflets and the blister cards are inserted into cartons together. Rotary Carton Pick-up Device: The rotary carton pick-up with four sets of suction cups can suck the cartons from the carton magazine, open the carton, place it on the carton conveyor. Leaflet Folding Device: The leaflet folding device can make the leaflet fold one to four folds according to the customer’s demand. Inserter Device: This cartoning machine is truly ergonomic thanks to the innovative design whereby the product inserting device is placed at the rear; The conventional cartoning machine’s inserting device is placed at the front side, where it protrudes from the operation side and is less ergonomic. Carton Magazine Device: Adopt a long carton magazine for approximately 1000 cartons. Max.Output: 400 cartons/min. Range of Carton Size: Max.200x90x60mm Min.75x30x15mm Machine Power: 11kw Machine Dimension: 5600x1700x2100mm Machine Weight: 4300kg
