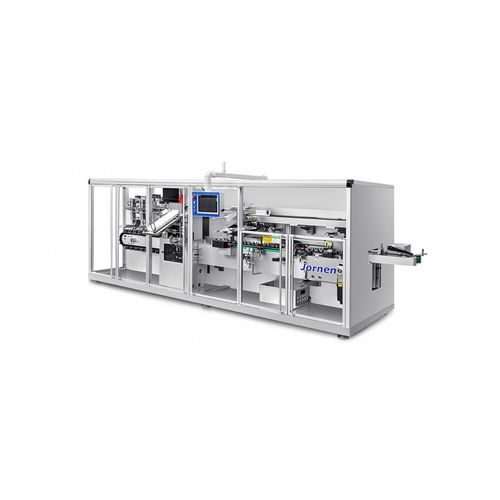

Cartoning machine for the pharmaceutical industry ZH500

high-speedservo-drivenfor blister

Product overview
The ZH500 integrates Jornen's cartoning expertise into the fastest fully servo-driven, continuous-motion cartoning machine in the range. Engineered for ultra-high-volume production, its fully enclosed cantilever (balcony) structure supports cGMP compliance, simplifies daily cleaning and reduces operational noise while ensuring operator safety.

Integration & flexibility
Built to serve as the central cartoner in a one-frame high-speed blister packaging line, the ZH500 combines top-line throughput with format flexibility. A rear-positioned inserting mechanism improves operator ergonomics. Optional modules include automated carton feeding and recipe-driven servo positioning for rapid, low-effort changeovers.

Key features

• Ultra-High Speed: fastest model for mass production
• One-Frame Integration: designed to connect with high-speed blister lines
• All-Servo Driven: maximum speed with format flexibility
• Auto Carton Feeding: optional to reduce manual handling
• Smart Setup: servo positioning for recipe-based changeovers
• Balcony Design: cantilever structure simplifies daily cleaning
• Ergonomic Design: rear-positioned inserting mechanism
• Fully Enclosed: reduces noise and ensures operator safety

Multimedia & demonstrations
Embedded demonstration videos and representative line examples are available on the product page to show machine operation, blister-to-case packaging and integration into high-speed production lines.

Technical characteristics / specifications

• Max. Output: 500 cartons/min
• Range of Carton Size: Max. 200 x 90 x 60 mm; Min. 75 x 30 x 15 mm
• Machine Power: 11 kW
• Machine Dimension: 5600 x 1700 x 2100 mm
• Machine Weight: 4300 kg
