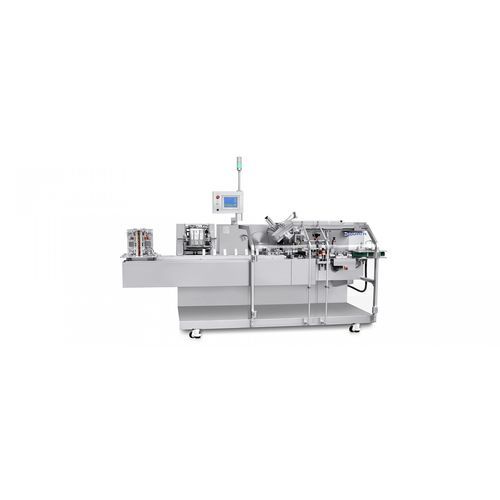

Horizontal cartoning machine ZH120
for the cosmetics industryfor the pharmaceutical industryfor the food industry

horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
horizontal cartoning machine
Add to favorites
Compare this product


Characteristics

Type
horizontal
Applications
for the cosmetics industry, for the pharmaceutical industry, for the food industry, medical
Other characteristics
automatic, bottle, tube, intermittent-motion, bag, box, compact, for blister
Throughput

Max.: 120 p/min

Min.: 30 p/min

Description

Automatic intermittent motion horizontal cartoning machine, very compact and reliable. The working area is in a cantilever (balcony type) layout. The main structure has a vertical partition to separate the drive section (rear) from the operating zones (front). It is suitable for packaging blisters, bottles, vials, pillow packs, etc. The machine runs stable and provides easy changeover for different sizes of cartons. It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in, or hot-melt closures and automatically discharge cartons. The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. It can connect with Blister Machine, Pillow Pack Machine, Overwrapper, etc., to form a Production Packaging Line. Main units of this Cartoner: Gear Device: The gear drives the carton conveyor chain and blister conveyor chain running in intermittent motion. Carton Conveyor Chain: The carton conveyor chain is used to transfer opened cartons to every station, which can automatically complete the actions of inserting blister cards and leaflets into cartons, embossing, closing of cartons, discharging cartons. Leaflet Conveyor Chain: The leaflet conveyor chain is applied to send folded leaflets to the blister feeding station then the leaflets and the blister cards are inserted into cartons together.
