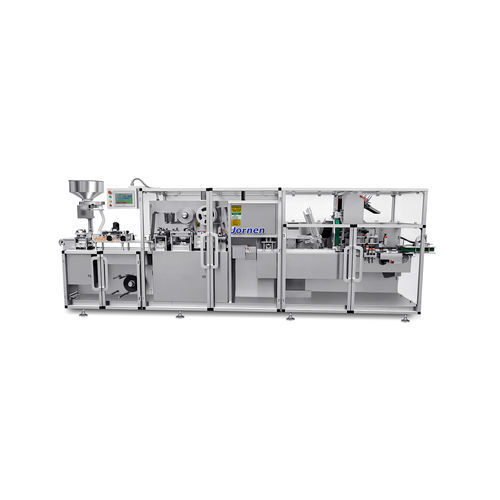

Packaging line for the food industry BPL100

for the pharmaceutical industryfor pharmaceutical productssyringe

These days, pharmaceutical packaging systems must fulfill this market requirement: the volumes of batches are decreasing and the number of variations is increasing, which leads to frequent format change-overs and cleaning. This Blister Line is our latest innovative response to this market need. . The integration of Blister Packaging and Cartoning systems achieves high efficiency and low-cost operation. . Flexible and straightforward for multi-variety and small batch production. . Optimally combined to form a compact line only five meters in length enabling installation in small production space. . The output equals 120 blisters and 100 cartons per minute – offering a maximum blister size of 135×120 mm and a carton format of up to 150x115x50mm. . Central operation via touch-screen system. . Blister feeder (universal or dedicated), which feeds standard shaped products quickly and efficiently. . After filling, a color camera subsequently checks the products – it can reject faulty blisters automatically (optional), and only perfect blisters are transferred to the cartoner unit. . Sealing of the blisters is carried out by a device that combines pneumatic and hydro form advantages that can easily adjust sealing pressure. When the machine stops, the heat sealing mold can rise up automatically to prevent hot air from getting into the blister pockets, so that medicine effectiveness is preserved.
