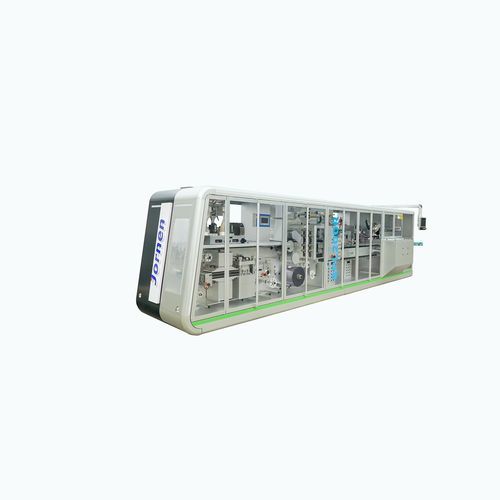

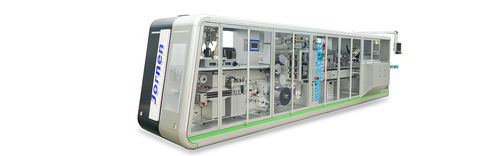

Packaging line for the pharmaceutical industry BPL200R
for pharmaceutical productsfor blisterblister

Packaging line for the pharmaceutical industry - BPL200R - Jornen Machinery Co., Ltd. - for pharmaceutical products / for blister / blister
Packaging line for the pharmaceutical industry - BPL200R - Jornen Machinery Co., Ltd. - for pharmaceutical products / for blister / blister
Add to favorites
Compare this product
Go to the Jornen Machinery Co., Ltd. website for more information

Characteristics

Application domain
for the pharmaceutical industry
Product applications
for pharmaceutical products, for blister
Other characteristics
blister, compact

Description

Product overview
  • Designed to meet market needs of decreasing batch volumes and increasing product variations, enabling frequent format changes and quick cleaning.
  • Integrated blistering and cartoning line tailored for pharmaceutical small‑batch, multi‑variant production.
  • Compact layout: complete line assembled in approximately seven meters to fit limited production spaces.
  • Servo‑motor driven indexing for stable and accurate operation.
  • Blister transfer via suction arms from punch station to blister magazine.
  • Leaflet folding configurable from 1 to 4 folds according to customer requirements.
  • Digital position indicator for straightforward, reproducible format adjustments.
  • Carton closing station designed for tuck‑in; optional hot‑melt unit can be integrated into the cartoner.
  • Toolless size‑change capability reduces downtime and increases production uptime.
  • Ergonomic sliding doors provide safe and convenient operator access.


Main technical parameters
  • Max. output: 200 cartons/min.
  • Range of carton sizes: Max. 150 x 115 x 50 mm; Min. 75 x 30 x 15 mm.
  • Installed power: 24 kW.
  • Machine dimensions (L x W x H): 7400 x 1700 x 2050 mm.
  • Machine weight: 5800 kg.


Key specifications
  • Product type: Blister packaging line (blistering + cartoning).
  • Model: BPL200R (compact).
  • Indexing: precise servo motor driven index system for stable and accurate operation.
  • Blister handling: suction‑arm blister transfer from punch station to blister magazine.
  • Leaflet folding: 1 to 4 folds configurable per customer requirements.
  • Carton closing: tuck‑in; hot‑melt unit optional.
  • Changeover: toolless size‑changing to reduce machine idle times.
  • Design: compact layout (~7 m) with ergonomic sliding doors for safe access.


Applications
  • Pharmaceutical blister packaging (tablets, capsules) and cartoning in small‑batch, multi‑variant production environments.
