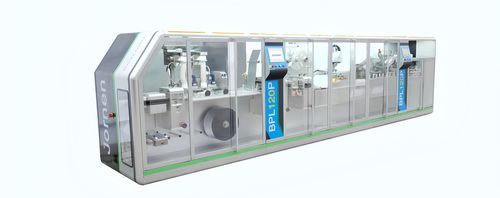

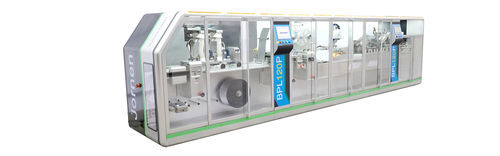

Packaging line for the pharmaceutical industry BPL120

for pharmaceutical productsfor cosmetic productsfor boxes

These days, pharmaceutical packaging systems must fulfill this market requirement: the volumes of batches are decreasing and the number of variations is increasing, which leads to frequent format change-overs and cleaning. This Blister Line is our latest innovative response to this market need. . Integrating Blister Packaging and Cartoning systems achieves high efficiency and low-cost operation. . Flexible and straightforward for multi-variety and small batch production. . Optimally combined to form a compact line only seven meters long, enabling installation in small production space. . Central operation via touch-screen system. . After filling, a color camera subsequently checks the products – it can reject faulty blisters automatically (optional). . When the machine stops, the heat sealing mold can rise up automatically to prevent hot air from getting into the blister pockets, preserving medicine effectiveness. . The index system uses a precise servo motor for stable, accurate running. The blister length can be set freely through the Touch Screen User Interface, which reduces the time for a format changeover. . The blister transfer mechanism uses suction arms, takes the blister cards from the punch station, and gently forwards them to the blister magazine. . The blister magazine in the cartoner unit is carried out by a servo motor. Inside the magazine, the blister cards are counted and, when they free fall, are held in position by the transfer belt.
