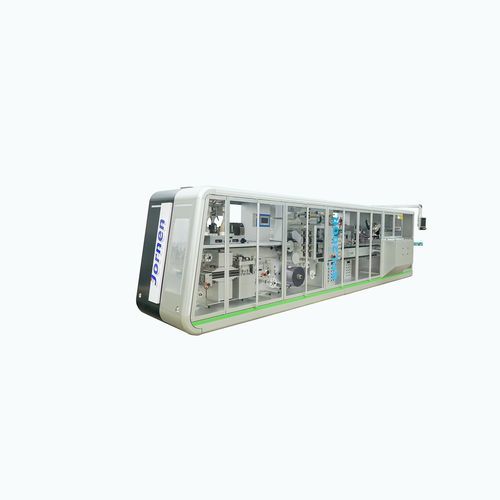

Packaging line for the pharmaceutical industry BPL200R

for cartonsfor blistercompact

Product overview:
Today's pharmaceutical packaging market demands extreme flexibility to handle decreasing batch sizes, increasing product variations, and frequent format changeovers. The integrated Blister and Cartoning Line BPL200R (compact) provides an efficient, space-saving solution for small-batch pharmaceutical production, combining blister punching, precise transfer and high-speed cartoning in a seven-meter footprint.

Key features:

• Ultra-compact footprint: Fully integrated line approximately 7 m long, suitable for facilities with limited floor space.
• Agile small-batch production: Designed for multi-variant, small-batch runs with rapid responsiveness to format changes.
• Rapid tool-less changeover: Tool-less format changes with digital position indicators for fast adjustments and reduced downtime.
• Seamless blister transfer: Precision suction-arm transfer moves blister cards from the punch station directly to the carton magazine with gentle handling.
• Precision servo control: Indexing and motion control driven by servo motors for stable, accurate operation.
• Versatile leaflet handling: Supports 1 to 4-fold leaflets and both standard tuck-in or optional hot-melt closures.
• Ergonomic and safe design: Ergonomic sliding doors provide safe access for operators and facilitate cleaning.

Main technical parameters:
Max. output: 200 cartons/min.
Carton size range: Max. 150 x 115 x 50 mm; Min. 75 x 30 x 15 mm
Machine power: 24 kW
Machine dimensions: 7400 x 1700 x 2050 mm
Machine weight: 5800 kg

Technical specifications:

• Model: BPL200R (compact)
• Integrated blister and cartoning line for pharmaceutical packaging
• Overall integrated line length: approximately 7 meters
• Max. output rate: 200 cartons per minute
• Carton size range: maximum 150 x 115 x 50 mm; minimum 75 x 30 x 15 mm
• Rated power consumption: 24 kW
• Footprint / dimensions: 7400 x 1700 x 2050 mm
• Machine weight: 5800 kg
• Blister transfer by precision suction arms from punch station to carton magazine
• Indexing and motion control: precision servo motors for stable and accurate operation
• Format changeover: tool-less with digital position indicators
• Leaflet handling: supports 1 to 4 folds
• Carton closure options: standard tuck-in or optional hot-melt closure
• Designed for multi-variety, small-batch production with ergonomic sliding doors for safe access and easy cleaning
