8-bit microcontroller ARD_R3DIP

analogPWM

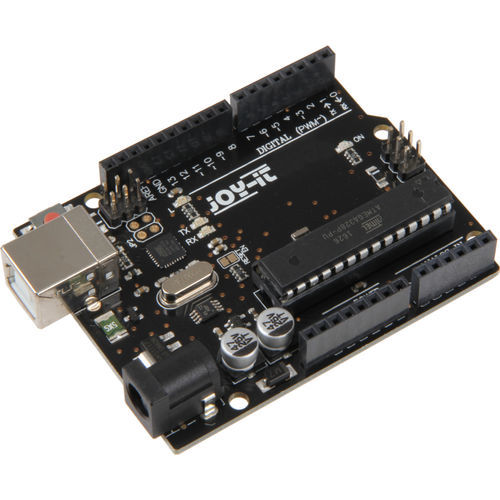

The R3DIP Board (Arduino UNO-compatible) is the right microcontroller for beginners who want to get into the programming world quickly and easily. Its ATMega328 microcontroller gives you enough performance to implement your ideas and projects. It measures 68 x 53 mm and has many connectivity options with 14 digital inputs and outputs and 6 analog inputs. The board has an USB Type B connector, that you can program it quickly and easily using the familiar Arduino IDE programming environment. The Joy-IT R3DIP with the plug-in systems and circuits can be supplied with power both via the USB port and alternatively via its own power connection. Please note: In order for the Joy-IT R3DIP to be recognized by the Arduino IDE software, the interface driver CH341 must be installed at first. MICROCONTROLLER ATmega328 FLASH 32 KB SRAM 2 KB EEPROM 1 x VOLTAGE 5 V, 50 mA INTERFACES 14x digital I/O Pins, 6x with PWM,1x USB, 1x SPI, 1x I²C, 1xICSP DIMENSIONS 68 x 53 mm WEIGHT 52 g ITEMS SHIPPED Microcontroller, USB-A to USB-B cable
